www.TURNSTILES.us is a professional organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989. We are a U.S. Federal Government Contract Holder (GS 07F 9239S) and are registered with the U.S. Federal Government System for Award Management (#181428611).
All of us at TURNSTILES.us appreciate the opportunity to help secure our client’s facility. This project features our EntraPASS Photo ID Badging System. Please find more information and documentation listed below.
EntraPASS Access Control System

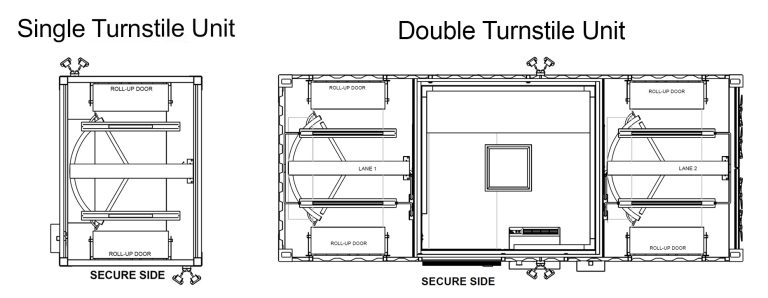

Photo-ID Badging and CCTV to work with MSSI Turnstile Units
EQUIPMENT
Site A – Brooklyn
(1) E-GLO-COM-WIN – EntraPASS Global Gateway
(1) Dell All-In-One Workstation
(1) Fargo DTC 4250e with Webcam and Test Cards
(2) 500 Print Ribbon Cartridges
(1) KT-2 – Controller for Single Lane Turnstile
(1) KT-4 – Controller for Double Lane Turnstile
(2) Battery Backup Power Supplies for KT Controllers
(6) Turnstile Relay and Base
(6) HID Prox Point Readers
(1) 500′ Box 4c Reader Wire
(1) (1,000) HID Double Sided Photo ID Prox Cards
(1) Switch – 5-Port
Site B – LGA
(1) EntraPASS Global Edition Software
(1) KT-2 – Controller for (2) Card Readers
(1) Battery Backup Power Supplies for KT Controllers
(2) HID Prox Point Readers
(1) 500′ Box 4c Reader Wire
(1) (150) HID Double-Sided Photo ID Prox Cards
(1) Switch – 5-Port
SERVICES
AutoCAD Equipment Line Diagram
Point-to-Point Schematic
Remote Desktop Assistance
*Programming needs access to one server computer to install EntraPASS Server, and any additional gateway computers to install EntraPASS Gateway, and any workstation/end-user systems that will need access to EntraPASS via EntraPASS Workstation.
Additionally, all your computers need to have TCP and UDP ports 18000, 18101, 18102, and 18103 opened/unblocked by any firewall, and their networks need to be accessible to one another.
We typically do remote desktop support over TeamViewer, or other screen sharing app.
AutoCAD Documentation
Featured Equipment
The EntraPASS Global Edition Workstation comes with Award-Winning EntraPASS Global Edition Security Management Software loaded onto a powerful Dell All-in-One PC:
It is pre-configured for a variety of security levels so other users can view and manage alarms, time zones, access control points, and reports.
Powerful features support remote live monitoring and reporting.
Additional Options and Licenses – including easy web and mobile apps – are available to expand the functionality of your access control system.
Print your own secure IDs with our ID Card Printer Package.
The Photo ID Badging Kit enables you to produce secure, personalized Access Control Badges in one single, seamless step.
The direct-to-card printer and encoder also has an intuitive, user-focused SmartScreen graphical display, enabling efficient set-up, operation and maintenance of your technology investment.
The ideal card printing solution for small businesses, schools, and local governments, this is the fastest printer in its class, allowing you to produce 50% more visually-rich, full-color credentials in the same amount of time.
Note: The Printer feeds the card through twice, reversing the back side direction – arrange the back ‘upside down’ as shown for aligned printing.
Custom Pole Mounting Kit
for Mini Domes
Custom Pole Mounting Kit
for PTZ Cameras
