TS2200 Pro Series Double Tripod Turnstile

Please Login for Pricing

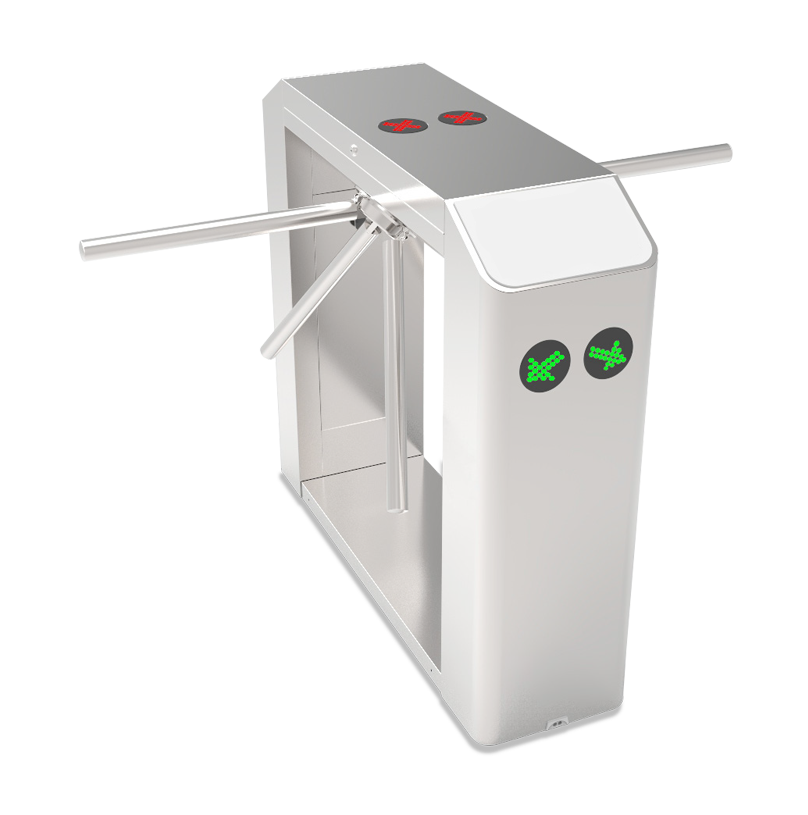

Our double tripod turnstiles provide a classic and safe way to protect your premises. They have three rotating arms and a connected arch bridge-style base and are used in various indoor environment applications. They fit perfectly as an economical option in office buildings and other related applications.



Login or Sign Up

Description

TS2200 is a dual-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes these highly durable. TS2200 is also surprisingly compact and designed to operate in small workspaces.

TS2200 tripod arms are normally held in a locked position, thus denying access to the secured side. Upon TS2200’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its tripod arms unlock, thus allowing users passage to the secured side.  The option for a built-in Request-To-Exit button allows users to conveniently exit the secured side without needing to use their access card or fingerprint. During emergencies and power outages the tripod arms completely collapse, thereby ensuring users FAST unencumbered exit to safety. TS2200 provides both security and convenience, all in a very durable compact design.

Data Sheet

User Manual



FEATURES

  • 304 stainless steel housing
  • Bi-directional tripod turnstile with arm drop function
  • LED pictograms for intuitive user experience and high throughput in both directions
  • High quality at an affordable price
  • Low power consumption
  • Wide range of accessories
  • Easy and simple installation process
  • Easy to maintain and monitor



Models:

DOUBLE Tripod:
TS2200 ProTripod Turnstile
TS2211 ProTripod Turnstile (w/controller and RFID reader)
TS2222 ProTripod Turnstile (w/controller and combination fingerprint/RFID reader)

SINGLE Tripod:
TS2000 ProTripod Turnstile
TS2011 ProTripod Turnstile (w/controller and RFID reader)
TS2022 ProTripod Turnstile (w/controller and combination fingerprint/RFID reader)



SPECIFICATIONS

  • Power requirements: AC110V/220V, 50/60Hz
  • Power consumption:
    • Starting 82W
    • Standby 29W
    • Unlock 76W
  • Working temperature: -28℃~60℃
  • Working humidity: 5%~85%
  • Working environment: Indoor/ Outdoor (if sheltered)
  • Speed of throughput: RFID Maximum 30/ minute – Fingerprint Maximum 25/ minute
  • Lane width:  20.47in / 520mm
  • Footprint:  44 * 53.3in / 1120*1355mm
  • Dimension:  44L * 12.4W * 38.7H /  1120*315*985mm
  • Dimension with packing:  48L * 18W * 43H  /  1200*440*1080mm
  • Turnstile weight:  143lbs / 65kg
  • Weight with packing:  165lbs / 75kg
  • LED indicator: Yes
  • Cabinet material: SUS304 Stainless Steel
  • Lid material: SUS304 Stainless Steel
  • Barrier material: SUS304 Stainless Steel
  • Barrier movement: Rotating
  • Emergency mode: Y
  • Security level: Medium
  • MCBF: 1 million
  • Options/ Accessories:
    • Counter
    • SUS316 Cabinet and Lid
    • Remote Control



DRAWING & DIMENSIONS

  • Lane passage width:  20.47in / 520mm
  • Footprint:  44 * 53.3in / 1120*1355mm
  • Dimension:  44L * 12.4W * 38.7H /  1120*315*985mm
  • Dimension with packing:  48L * 18W * 43H  /  1200*440*1080mm

Inches and (mm)

INSTALLATION

Installation Services Available
See our portfolio of work Here



*Please note: Freight and installation is not included and will be separate cost. Contact us for a quote.



Additional information

Weight 165 lbs
Dimensions 48 × 18 × 43 in
Selection

TS2200 Double Tripod Turnstile, TS2211 Double Tripod Turnstile (w/controller and RFID reader), TS2222 Double Tripod Turnstile (w/controller and combo fingerprint/RFID reader)
