Description

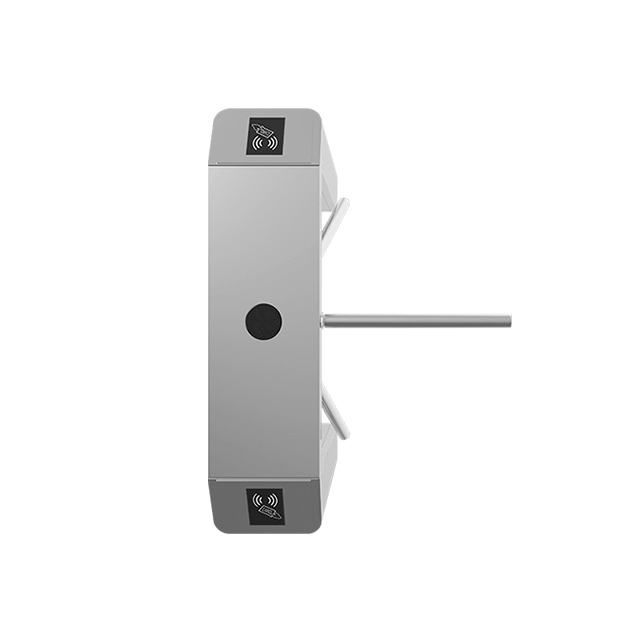

Our Pro series tripod turnstiles provide a classic and safe way to protect your premises. They have three rotating arms and an arched bridge-style base and are used in various indoor environment applications. They fit perfectly as an economical option in office buildings and other related applications.
Data Sheet – TS2000 Pro Series Tripod Turnstile
Installation Manual – Pro Series Tripod Turnstiles
FEATURES
- 304 stainless steel housing
- Bi-directional tripod turnstile with arm drop function
- LED pictograms for intuitive user experience and high throughput in both directions
- High quality at an affordable price
- Low power consumption
- Wide range of accessories
- Easy and simple installation process
- Easy to maintain and monitor
Models:
TS2000 ProTripod Turnstile
TS2011 ProTripod Turnstile (w/controller and RFID reader)
TS2022 ProTripod Turnstile (w/controller and combination fingerprint/RFID reader)
Also See Double Tripod Model TS2200
SPECIFICATIONS
| Power requirements | AC110V/220V, 50/60Hz | |
| Power consumption |
Running
Standby
|
18W
6W
|
| Working temperature | -28 °C – 60 °C | |
| Working humidity | 5%-80% | |
| Working environment | Indoor/Outdoor(if sheltered) | |
| Speed of throughput |
RFID
Fingerprint
|
Maximum 30/minute
Maximum 25/minute
|
| Lane width(mm) | 500 | |
| Footprint(mm*mm) | 785*1110 | |
| Dimension(mm) | L=1110, W=280, H=987 | |
| Dimension with packing(mm) | L=1175, W=370, H=1070 | |
| Net weight(kg) | 42 | |
| Weight with packing(kg) | 48 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | SUS304 Stainless Steel | |
| Barrier movement | Rotation | |
| Emergency mode | Y | |
| Security level | Medium | |
| Mean cycles between failure (MCBF) | 1 million | |
| Options/Accessories | Counter, SUS316 Cabinet, and Lid, Remote Control | |
DRAWING & DIMENSIONS
Inches and (mm)
INSTALLATIONS
Installation Services Available
See our portfolio of work Here
*Please note: Freight is not included and will be billed separately. Contact us for a quote.
