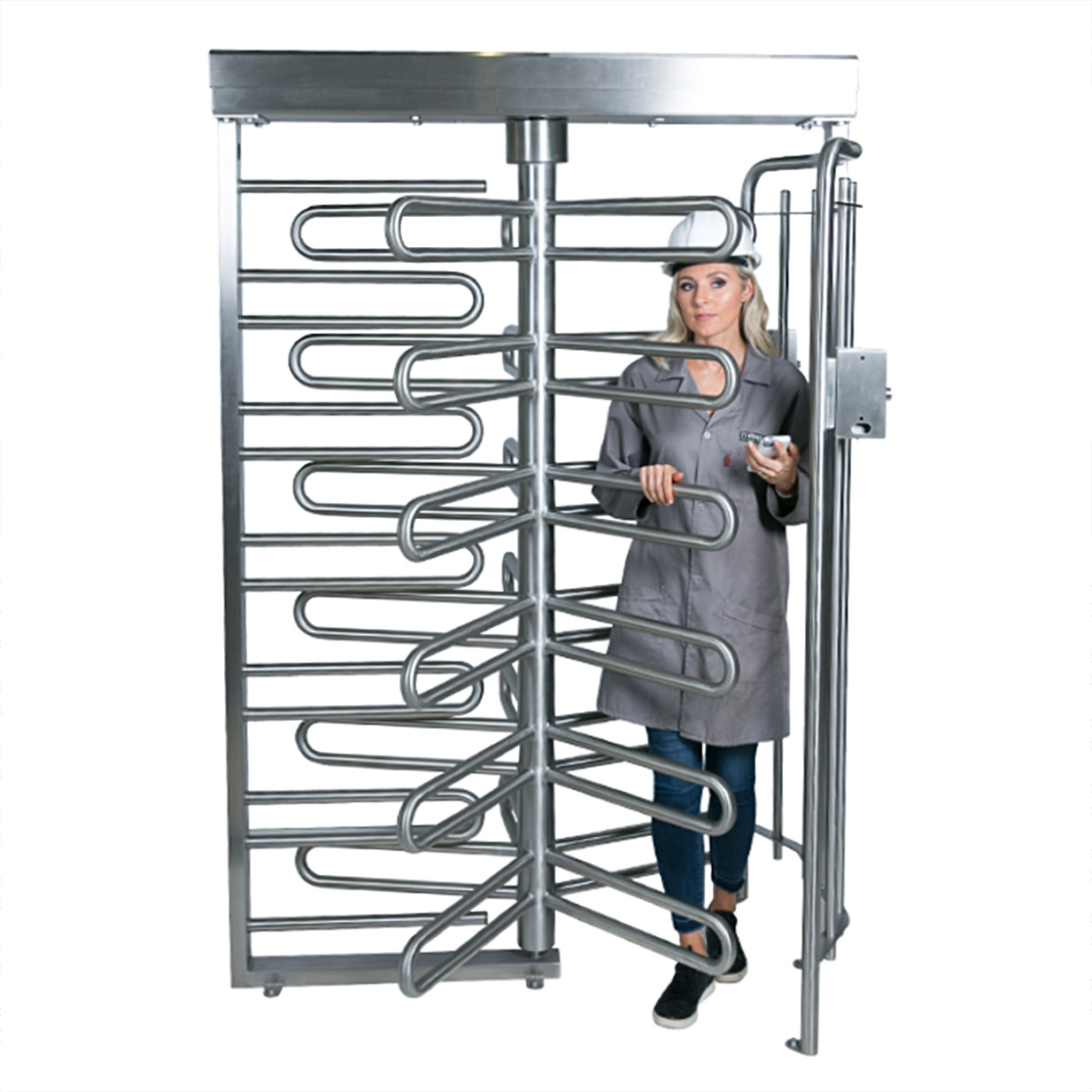

TRIUMPH Full Height Industrial Turnstile Single (3, 4 and 5-Arm)

Please Login for Pricing

The TIUMPH Full Height Industrial Turnstile provides a high level of perimeter security and is available in a single or tandem configuration, with 3, 4, or 5 rotating arms.



Login or Sign UpRequest A Quote

Description

TURNSTILES.us’ full-height industrial turnstiles are the ideal way to secure an area and control the traffic that flows through it. By only letting one person at a time through the turnstile, optimum security is guaranteed. This explains the popularity of full-height turnstiles in the mining industry, as well as in factories, warehouses, and busy stadiums. Further control is exercised by integrating access readers, ticketing equipment, push buttons, and coin or token acceptors. We offer multiple models, each with slight modifications to best suit your specific security needs.

The TRIUMPH Full Height Industrial Turnstile provides a high level of perimeter security and is available in a single or tandem configuration.

Data Sheet



APPLICATION

  • Suited for applications requiring high volume access and high levels of security

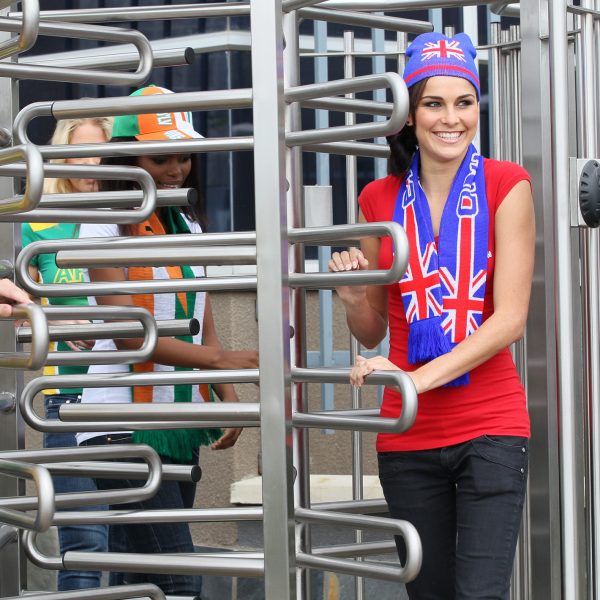

  • Used extensively in applications such as mines, factories, warehouses, colleges, building sites and stadiums
  • Interior and exterior installations
  • Suitable for severe operating conditions
  • Exported worldwide

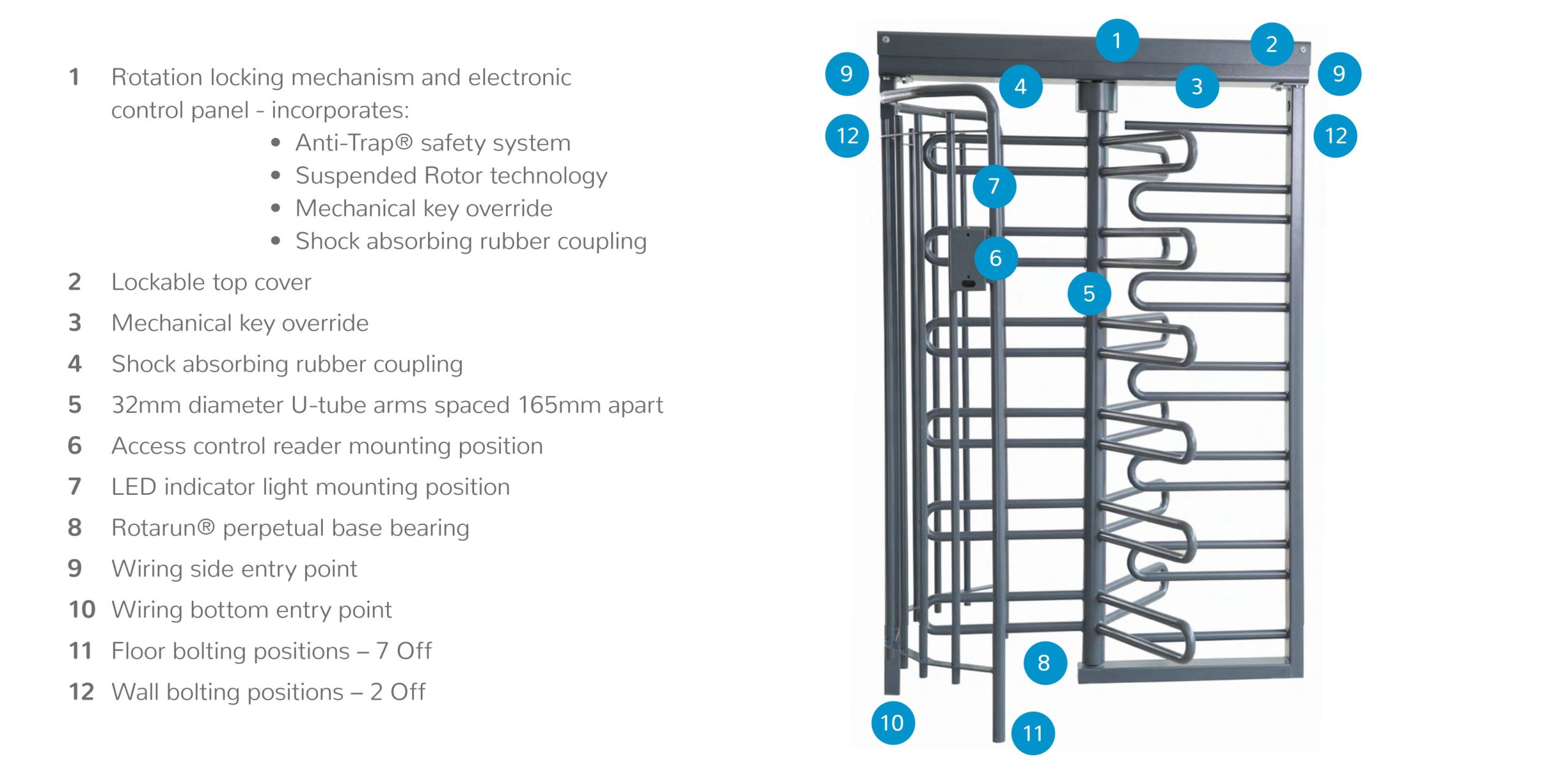

FEATURES

Full-Height Turnstile:

  • Provides a high level of perimeter security
  • Available in Single and Tandem

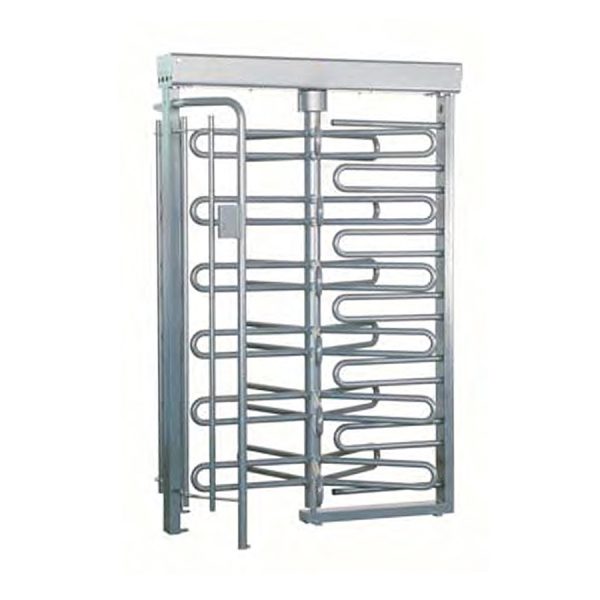

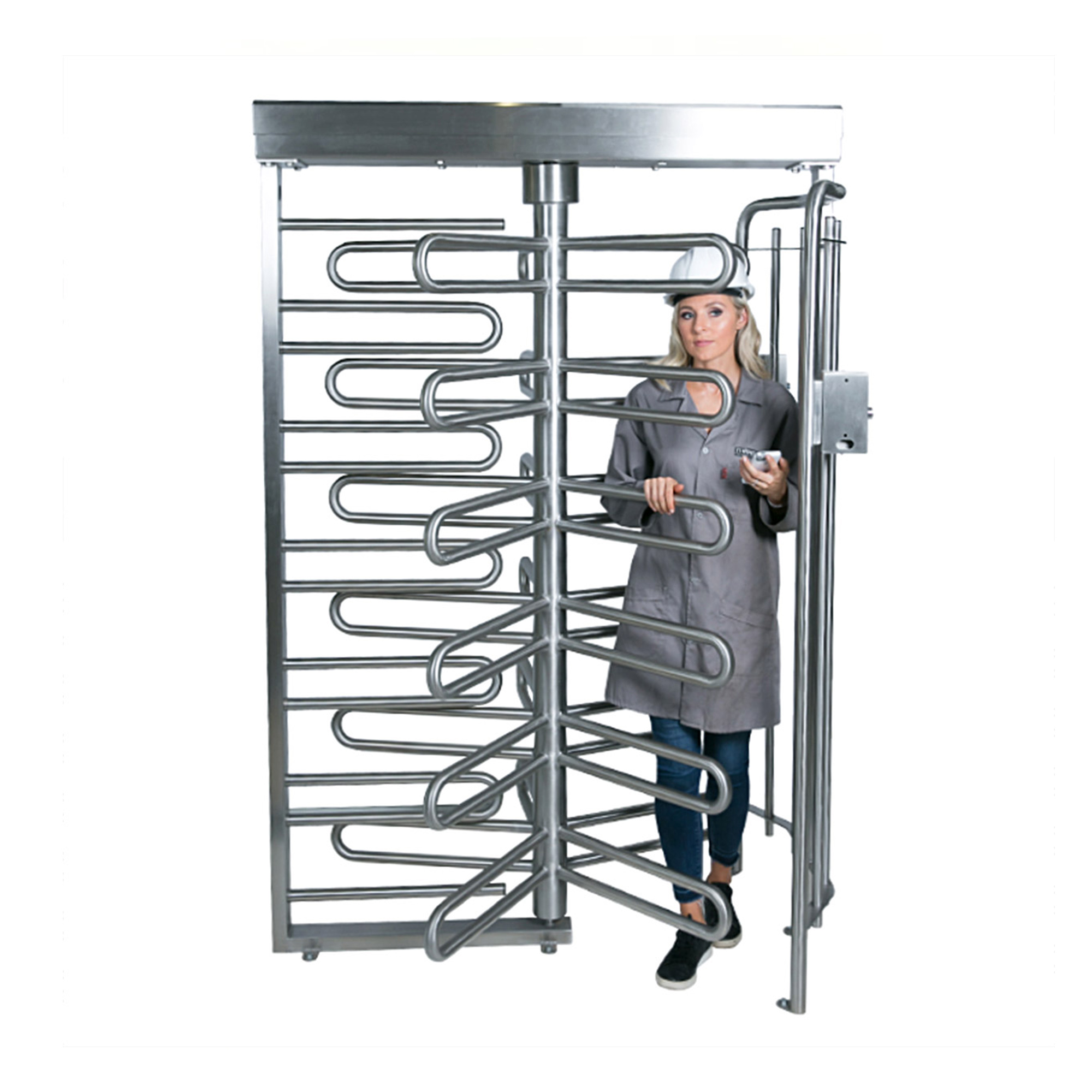

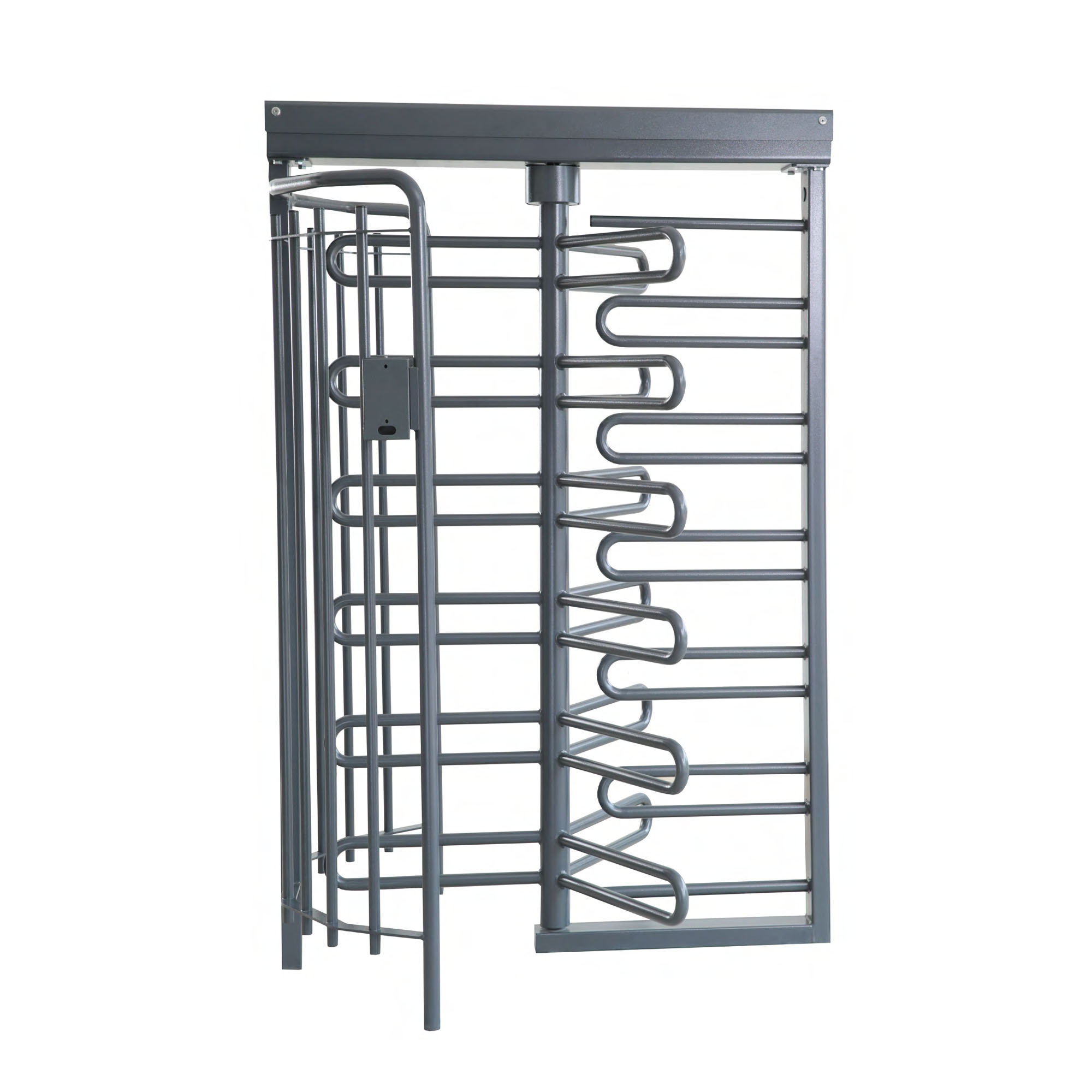

  • 3 arm (120°), 4 arm (90°) and 5 arm (72º)
  • 10-year manufacturer guarantee
  • Electric turnstile complete with control panel and logic
  • Designed by professional engineers
  • Ultra heavy-duty electromechanical rotation locking mechanism
  • Suspended rotor technology – eliminating stress on the base bearing
  • Self-centering rotation system – rotor returns to starting position after every rotation
  • Anti-trap safety system – no mid-rotation locking or trapping in the event of a power failure
  • Programmable PLC logic with user diagnostic features
  • Mechanical key override for each direction
  • Ultra-quiet, buffered solenoids and pawls
  • Designed for severe weather conditions
  • Integrates with EntraPASS Access Control System



Rotation Locking Mechanism:

RELIABLE TECHNOLOGY
• Ultra heavy-duty electromechanical rotation locking mechanism
• Bi-directional operation
• Designed by professional engineers
• Tried, tested and perfected over a period of over 20 years

DURABLE FEATURES

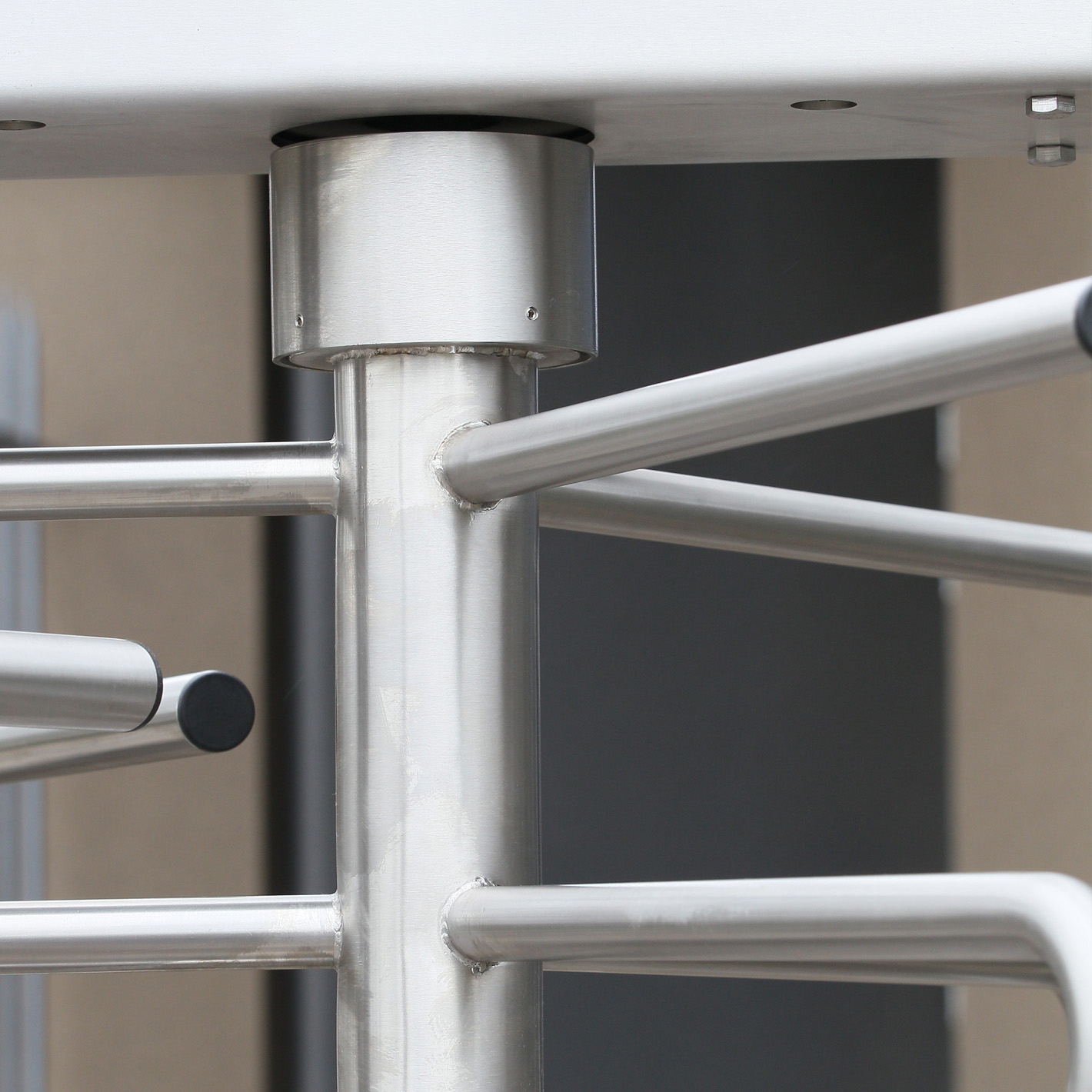

• Suspended rotor technology – eliminating stress on the base bearing
• Self-centering rotation system – rotor returns to starting position after every rotation
• Shock absorbing rubber coupling system
• Anti-Trap safety system – no mid-rotation locking or trapping in the event of a power failure
• Programmable logic with user diagnostic features
• Mechanical key override – clockwise and anti-clockwise directions (fail-secure)

MANUFACTURED TO LAST
• Zinc plated for corrosion resistance
• Ultra quiet, buffered solenoids and pawls
• Solenoids rated for 100% duty cycle
• Case hardened locking disk and pawls – eliminating any wear
• Factory settings need no further adjustment
• No routine maintenance whatsoever, ever
• 10 year mechanical guarantee
• 1 year electrical guarantee
• CE conformity



FINISH CHOICES

  • Mild steel with UV resistant polyester exterior powder coat finish (charcoal blue)
  • Mild steel with hot-dip galvanized finish
  • 304 grade brushed stainless steel
  • 316 grade brushed stainless steel
  • Other colors available upon request

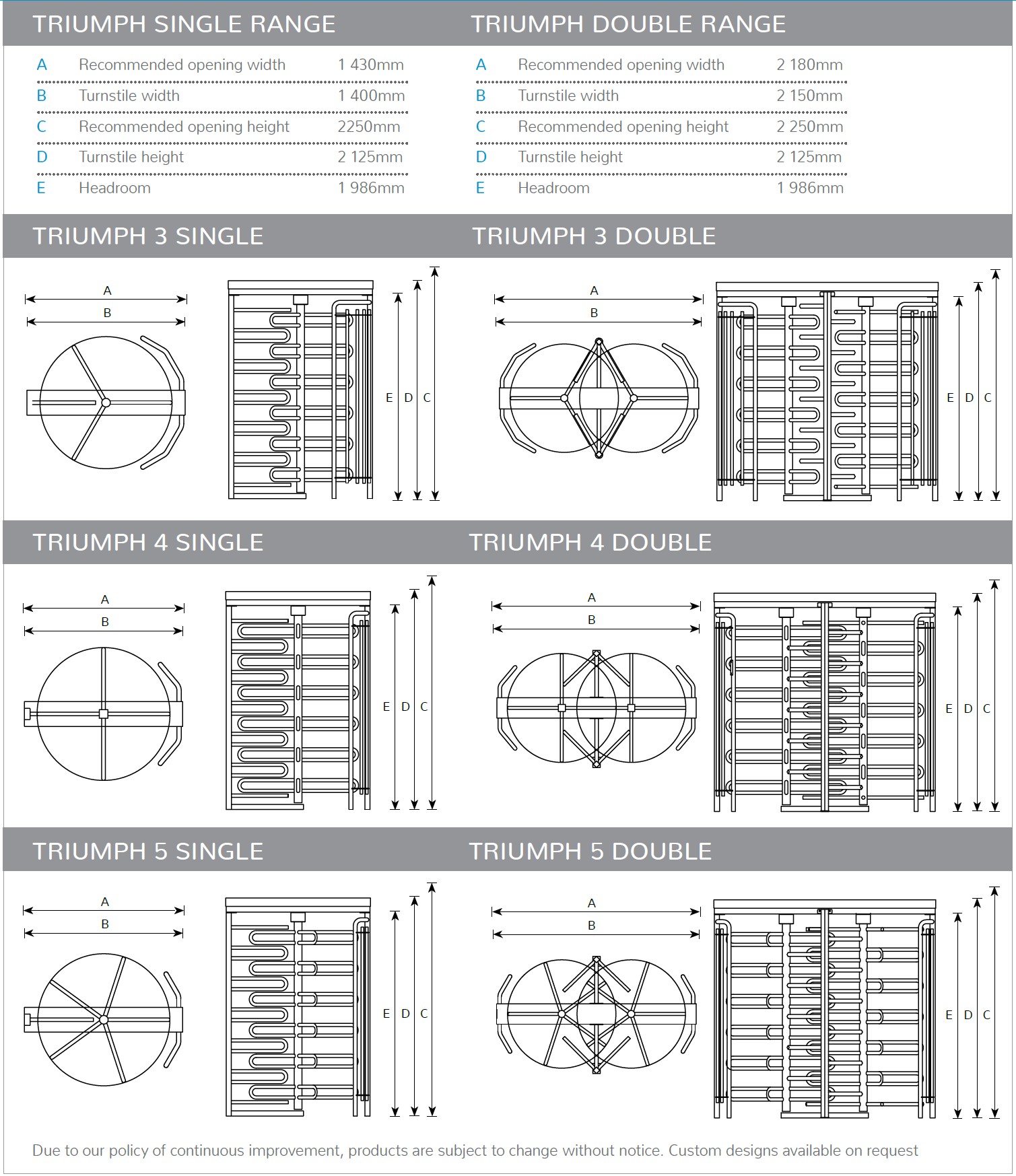

DRAWING & DIMENSIONS

Click to enlarge



INSTALLATION

Installation is available in your area. See our portfolio of work.



*Note shipping is not included and will be an additional cost. Freight exported worldwide through FedEx or DHL from TURNSTILES.us Manufacturing South Africa.
