Description
The AVLELEC SMG-2 Sound Masking Generator is an essential tool for enhancing speech privacy and creating a more comfortable acoustic environment. This device generates a precise analog pink noise signal, which is then routed to sound masking amplifiers (sold separately), producing a gentle background noise that helps obscure conversations and prevent eavesdropping in sensitive spaces.

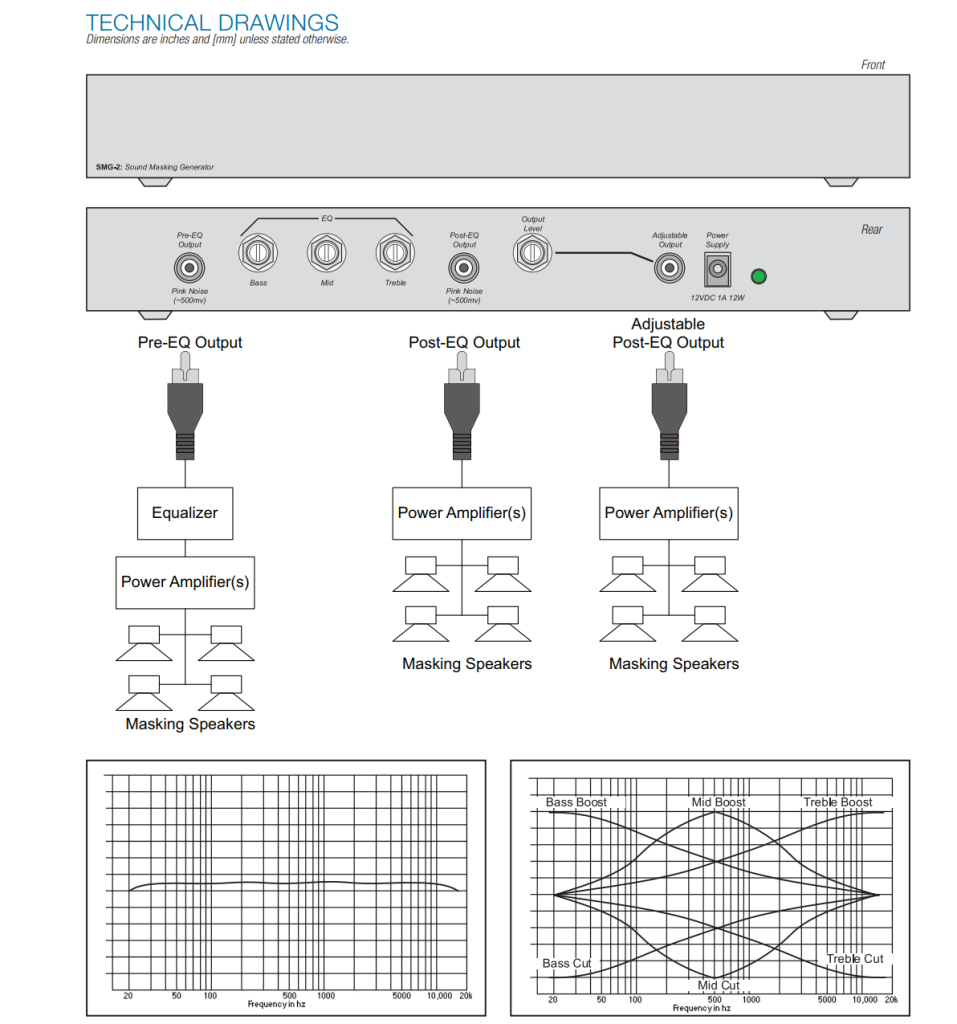

Featuring both pre-EQ and post-EQ outputs, the SMG-2 provides flexibility in your sound masking setup. The pre-EQ output delivers a flat spectrum ideal for feeding into equalizers that require precise frequency shaping, ensuring optimal sound masking performance. The post-EQ output offers convenient bass, mid, and treble adjustments, making it perfect for applications that don’t demand the same level of customization but still benefit from tailored spectrum shaping.

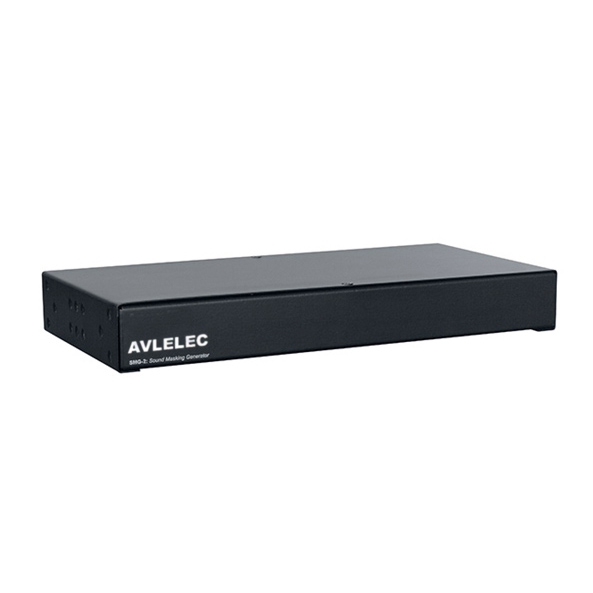

Housed in a durable black box design, the SMG-2 comes with rack mounting brackets for easy installation in professional audio setups. Whether you need high-end customization or straightforward noise masking, the SMG-2 Sound Masking Generator is a reliable, cost-effective solution for enhancing speech privacy and overall acoustic comfort. Compatible with our MA30 Amplifier.
FEATURES

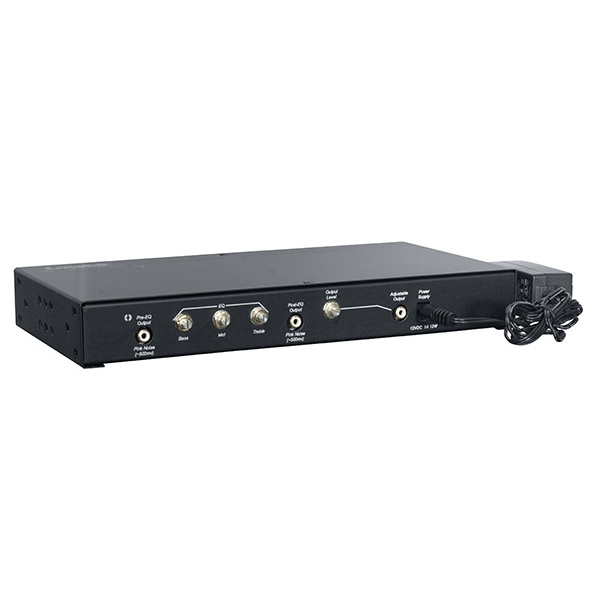

- Outputs:
– Pre-EQ hi-Z line level (~500mV)
– Post-EQ hi-Z line level (~500mV)
– Pink noise (equal energy per octave)
– Adjustable post-EQ - Connections: RCA phono jacks
- Controls: Bass, mid, treble, and volume allow for basic noise spectrum shaping without an external equalizer.
- Chassis: 12.2″ x 1.5″ x 6″ steel chassis with black powder epoxy finish. (19″ x 1.75″ x 6″ with brackets set for rack mount use)
- Power Supply: UL Listed power supply (UL60950) with universal input (100–240VAC) and 12VDC @ 1A output.
- Mounting Aids: Universal mounting brackets for rack, shelf, wall, or under counter use.
- Origin: Made in the U.S.A. with global components
