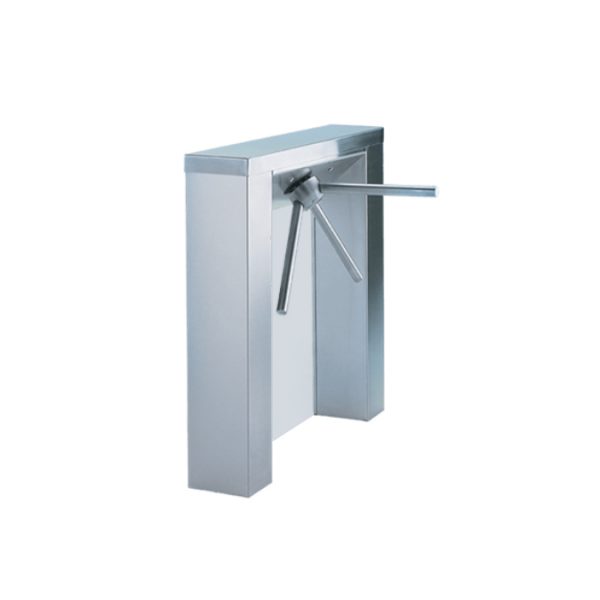

The PassThru Series waist-high turnstiles are high traffic volume units crafted in 304 stainless steel. This model provides the largest passage area (18″ arm) of any of our waist-high units. PassThru units are available in total stainless steel (PTS or PTS-P; portable) for interior or exterior applications or with a solid surface top for interior projects (PTR round end and PTZ trapezoid end).
Data Sheet – PTS PTR PTZ / PassThru Series
Production Worksheet for Manufacturing – Tripod
APPLICATION/USE
- Interior or exterior use (PTS Model Only)
- Interior use (PTR and PTZ Models)
- Ideal for managing high traffic volume areas where you want a more “open” cabinet style
- This unit features our longest turnstile arm (18”)
- Can be interfaced with optional LCD counters, computer attendance systems, card readers, push-button and wireless remote controls
- Nearly universal integration to any number of access control systems
OPTIONS FOR THE PASSTHRU SERIES
- Home Position Switch – Additional limit switch provides an SPDT output while at home for security integration
- Proximity Sensor Upgrade – Replaces limit switches with proximity sensors for part longevity
- Bidirectional Key Override Set for Manual or Electric 2-Way Units – Allows the turnstile to be locked independently in each direction with a turn of a key
- Daylight Visible Indicator Lights – A tri-color (R/G/Y) indicator light. Most models only use R/G.
- 8 Digit Key Resettable LCD counter with 7 year Lithium Battery
- Single or Double Push Button (installed on-site)
- One Channel 900 MHz Wireless Receiver (one per direction)
- One or Two Button Wireless Key Fob Transmitter
- Battery Back-Up – 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger
- Card Reader Mounting Option – Recessed into the lid (per lid, up to 2 readers) – PTR & PTZ models only
- Add a Steel Backplate to Turnstile
FINISH
- Cabinet: 304 Stainless Steel / Satin Finish
- Top: Stainless Steel on the PTS model
*Corian Tops (PTR and PTZ model):
*Select a Solid Surface Top from the Corian Color Pallet (or Wood) - Arm: Stainless Steel
*316 Stainless Steel Upgrade (only available for large quantity orders)
DRAWINGS & DIMENSIONS
PTS Tripod:
- Item weight: 155lbs each
- Height: 38.250″ (971.55mm)
- Width: 26.625″ (676.275mm)
- Depth: 36.625″ (930.275mm)
- Base: 8.000″
- Arm Length: 18.000″
INTEGRATION OPTIONS
Above: Complete Entrance Management Solution from TURNSTILES.us with customized PassThru Tripod Turnstile
INSTALLATION EXAMPLE
Above: PassThru Tripod Turnstiles with Customized Top and Round Ends
*Please note Freight is not included and will be billed separately. Contact TURNSTILES.us for more information.
