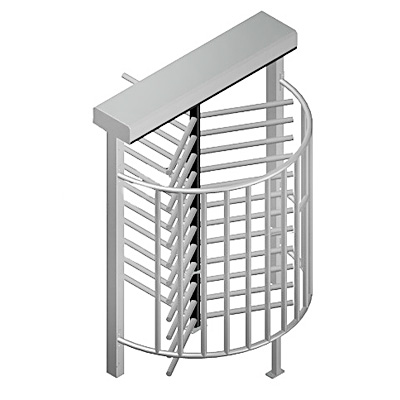

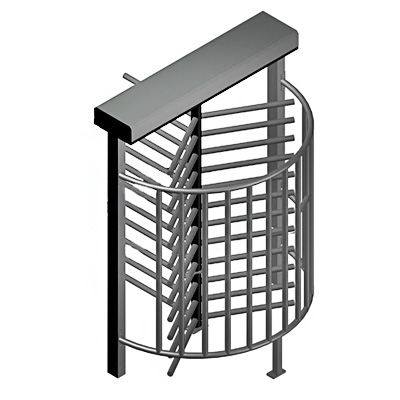

AG-TQH-T Three-Quarter Height Turnstile

Please Login for Pricing

The AG-24-TQH-T is a unique three-quarter-height industrial turnstile. This American steel turnstile provides controlled access when entering or exiting a facility where high flow traffic is present. It can be seamlessly integrated with card readers, counters, cameras, EntraPASS Access Control Software and more. Each unit is constructed with pride in the USA. Matching ADA Swing Gates and a full line of Access Control equipment are also available. Please contact us for a formal quote.



Login or Sign Up

Description

The AG-TQH-T is a unique three-quarter-height industrial turnstile. This American steel turnstile provides controlled access when entering or exiting a facility where high flow traffic is present. It can be seamlessly integrated with card readers, counters, cameras, EntraPASS Access Control Software and more. Each unit is constructed with pride in the USA. Matching ADA Swing Gates and a full line of Access Control equipment are also available.

Data Sheet – AG-TQH-T  Three-Quarter Height Turnstile

Production Worksheet for Manufacturing – AG-TQH-T  Three-Quarter Height Turnstile

Correct vs. Incorrect Center Rotation

Finish and Color Options

STANDARD FEATURES

  • Three-Quarter Height Single Turnstile
  • Included:
    • (1) Two-Way Electronic Control Head
    • (2) Card Reader Mounting Plates
    • (1 Pkg) Plastic End Caps on all Arms
    • (1) Bidirectional Key Override Set (turnstile can be unlocked manually by key, in either direction for service or temporary events where locking isn’t required)
    • (1) Modular Locking Mechanism (fail-safe or fail-secure, clockwise or counterclockwise)
  • 24″ Passage Width
  • All Stainless Steel Hardware
  • Spline Shaft, Collar, Bearing, and Bottom Flange are Corrosion-Resistant Stainless Steel
  • Extra Thick Mounting Brackets for added Security
  • Durable Galvanized Finish (standard)
  • Made in America
  • Electrical Specifications:
    • Input voltage: 100-220 VAC
    • Frequency: 50/60 Hz
    • Operating Voltage: 30 VDC
    • Operating Current: 0,2A



ADDITIONAL OPTIONS

  • Tandem Configuration Available
  • 8-Digit Resettable Counter
  • Battery Backup
  • Cold Weather Package (prevents freezing)
  • Daylight Visible Indicator Lights
  • Heel Guards
  • Portable Base
  • Filler Barrier
  • Lockout Bar
  • Choice of Finish
  • Curved or Square Frame style
  • Custom Passage Width (24″ Standard)
  • Integrate with EntraPASS Access Control Software System



FINISH CHOICES

  • Galvanized
  • Powder Coated over Raw Steel (See color chart)
  • Powder Coated over Galvanizing
  • Powder Coated over Stainless Steel
  • Custom colors available upon request





INSTALLATION

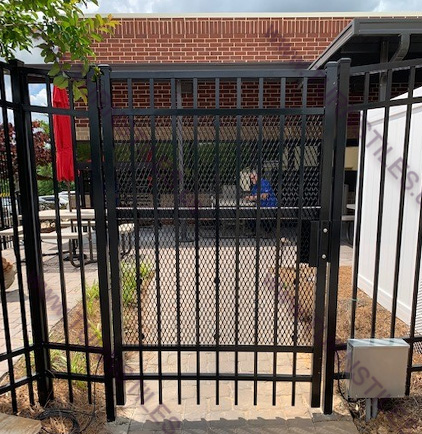

AG-24-TQH-T  and ADA Gate. See more photos of this installation for N – Lancaster, SC



Contact TURNSTILES.us for more information.
Installation is available – See our Portfolio of Work Here





*Contact us for a freight quote.

Additional information

Finish

Galvanized, Powder Coated, Stainless Steel, Powder Coating over Galvanized

Selection

Three-Quarter Height Single, Three-Quarter Height Tandem
