Description

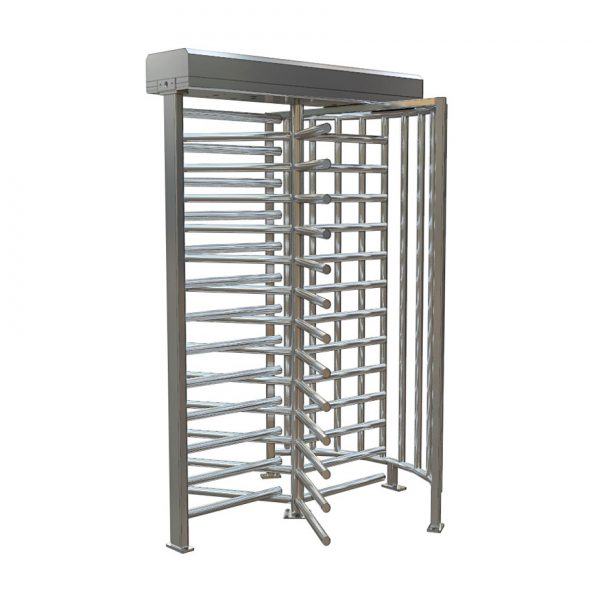

The AG27-T is a heavy-duty, full-height industrial turnstile. The function of a turnstile is to provide high security controlled access when entering or exiting a facility where high flow traffic is present. It can achieve this both mechanically (no access control system/software, such as a pool gate where the passage is used for exit only and no entry) or electronically (with an access control system, card readers, fingerprint readers, etc. for keeping track of who is on and off-site). These industrial-grade turnstiles have weather-proof finishes in a variety of colors to match your building. Our turnstiles are constructed with American Pride right here in the USA.
DOCUMENTATION
Data Sheet – AG Series Full Height Single Turnstiles
Production Worksheet for Manufacturing
Correct vs. Incorrect Center Rotation
Turnstile Finish Options / Powder Coating Color Chart
Annual Recommended Maintenance Instructions
STANDARD FEATURES
- Full-Height Single Turnstile
- Included:
- (2) Card Reader Mounting Plates
- (52) Plastic End Caps on all Arms
- (1) Bidirectional Key Override Set (turnstile can be unlocked manually by key, in either direction for service or temporary events where locking isn’t required)
- (1) Modular Locking Mechanism (fail-safe or fail-secure, clockwise or counterclockwise)
- All Stainless Steel Hardware
- Spline Shaft, Collar, Bearing, and Bottom Flange are Corrosion-Resistant Stainless Steel
- Extra Thick Mounting Brackets for added Security
- Durable Galvanized Finish
- Made in America
- Electrical Specifications:
- Input voltage: 100-220 VAC
- Frequency: 50/60 Hz
- Operating Voltage: 30 VDC
- Operating Current: 0,2A
- Input voltage: 100-220 VAC
ADDITIONAL OPTIONS
- Battery Backup – Up to 8-hours of power per battery installed inside the header
- Cage Canopy – Half-circle yoke guard, covers the passageway
- Counter – Resettable counter for tracking access events
- Counter/Light Module – *Required when using counter and light accessories!
- Cold Weather Package – Insulated header and enclosure heater
- Lights, LED Accent – White accent lamps mounted on the cage (x2)
- Lights, Indicator – Light that switches from red to green with access granted
- Lights, Directional – Light array with green arrow and red X (x2)
- Heel Guards – Foam padding on turnstile arms for user safety
- Hinged Lid – Hinged header for easier access to top controls
- Choice of Finish
- Portable Base Plate
- Matching Filler Barriers
- Matching ADA Door / Gate
- Solar Power
- Integrate with EntraPASS Access Control
- More options available upon request
DIMENSIONS
- AG-27-T Single Turnstile
- 60″ Length
- 54″ Width
- 90″ High
- Shipping Weight
- 700lbs
- Recommended Concrete Pad Size for AG-27-T
- Minimum 66″ Long x 66″ Wide x 6″ Thick
- More Concrete Pad Sizes
- For Single Turnstiles
Model Length (min) Width (min) Thickness (min) PSI AG-27-T 66” 66” 6” 3500 PSI AG-30-T 72” 72” 6” 3500 PSI AG-36-T 84” 84” 6” 3500 PSI AG-39-T 90” 90” 6” 3500 PSI AG-48-T 108” 108” 6” 3500 PSI - For Tandem Turnstiles
Model Length (min) Width (min) Thickness (min) PSI AG-27-TT 99” 66” 6” 3500 PSI AG-30-TT 108” 72” 6” 3500 PSI
- For Single Turnstiles
FINISH CHOICES
- Hot Dipped Galvanized
- Powder Coated Black (Other RAL colors available – see chart below for examples)
- Complete # 304 Stainless Steel
- 316 Stainless Steel for corrosive or coastal environments
- Powder Coated over Galvanized
- Powder Coated over Stainless Steel
ACCESS CONTROL PACKAGES
1. EntraPASS with Proximity Reader Package
2. EntraPASS with Fingerprint Scanner Package
INSTALLATION
Full Height Single Turnstile with ADA Gate and Filler Barrier Add Ons
Contact TURNSTILES.us for installation information.
See our turnstile installation portfolio here.
*Please note the price listed is equipment only, and freight will be charged separately. Please contact us for a freight quote.
