mWing Illuminated Optical Swing Gate

Please Login for Pricing

Our fast and thin pedestrian speed gate, the mWing, is rapidly becoming the first choice for architects and building owners where sophisticated design is as important as securing the location. Whether it’s an office, cultural venue or public building, the chic design, the warm comfortable material, and intuitive operation transform the building’s access control process into a pleasing, no-hassle activity for patrons.



Login or Sign Up

Description

Elegance for demanding surroundings
With an inviting see-through design, quick opening times, and no-contact passage – mWing is the pinnacle in both security and elegance. Our fast and thin pedestrian e-gate is rapidly becoming the first choice for architects and building owners where sophisticated design is as important as securing the location. Whether it’s an office, cultural venue, or public building, the chic design, the warm comfortable material, and intuitive operation transform the building’s access control process into a pleasing, no-hassle activity for patrons. mWing not only advances user acceptance of access gates but also ensures that security levels for the site are achieved. mWing is adaptable and configurable to meet nearly any customer’s requirements, thanks to its versatile configuration, options, and accessories. Multiple bi-directional lanes are easily set up to address high patron throughput, and a wide-lane version is available to accommodate groups, material carts, and personal mobility equipment. By selecting waist-high or higher barriers, customers can choose the appropriate security level they wish to enforce. As a result, mWing is equally suited for monitored and non-monitored zones.

Data Sheet

Installation & Operation Manual

Wiring Diagrams

MGCplus Controller



FEATURES

  • Innovative, stylish design
  • High visitor throughput thanks to rapid opening times and preset operation modes
  • Open-gate mode for extra fast throughput
  • Optional high barriers for maximum security requirements within monitored and unmonitored areas
  • Safe and secure with light-touch, auto-reverse barrier impact detection
  • Free passage on power outages
  • Designed for 10,000,000 opening and closing cycles
  • Priced per piece to build your array
  • Basis Module: This is the ‘first’ piece of equipment in your set of optical turnstiles. It sends a signal and has one gate wing.
  • End Module: This is the last piece of equipment in line and closes off the set of turnstiles. It receives a signal and has one gate wing.
  • Center Module: This goes in between the Basis and End module to create two or more ‘lanes’, like driving lanes or bowling lanes – but for people to walk through. These send and receive signals, and have two gate wings (one on each side).

OPTIONS

  • BOLED100: LED Floor Illumination (LED floor illumination is decorative and helps guide passengers through. Can be switched on/off.)
  • DT100: Push-button with illumination ring; qty 2 (1 each end)
  • EM01: Ethernet Interface – Parameterization and signal processing of pedestrian gate via a local network or the Internet.
  • ESU01: Buzzer – Alarm for the optional indication of a forced passage attempt, a random control hit, a functional error, an under crawl or overclimb attempt. Automatic reset after a preset time span.
  • GED100: Gate End Display (Red-Green), Passage indicator GED, left-hand; mounted on both sides
  • GED101: Gate End Display (Red-Green), Passage indicator GED, right-hand; mounted on both sides
  • RLED100: Circular Frame Illumination in red and green with separate activation for entry and exit flank. Can be used for indication of ready for passage state or as permanent design illumination.
  • SL100: Custom Color (front & back panel only – other elements in Anthracite)
  • VE100: Power supply unit for DA100, VERH100, and LED lighting (one VE100 will operate all connected items)



Options
Special colors More than 20 color tones are available
Barrier elements Glass wing made of single-layer safety glass
(ESG) or acrylic glass, customer-specific barrier
elements
Wide passageway Wide-lane configuration, 900 mm width
Passage direction indicator yes
Floor illumination yes
Frame-edge illumination yes
Warning on forced entry yes
Interlock against forced
entry
yes
Ethernet connection yes



Accessories
Emergency button For triggering the alarm contacts and
unlocking the barrier elements
Base frame For integration in new buildings,
height adjustable between 10 and
15 cm
Escape routes and wide passageways mSwing swing door for escape
routes and wide passageways
Separation of access areas mGuide railing system for the
separation of controlled and
uncontrolled areas
Adhesive plate For adhesive mounting on finished
floors



SPECIFICATIONS



Technical data mWing
Application Indoor and outdoor
Passage width Standard: 600 mm / 23 in
Wide Lane: 900 mm / 36 in
(more on request)
Total width for 1 lane Standard: 960 mm / 38 in
Wide: 1260 mm / 51 in
Height of barrier
elements
Standard: 889 mm / 35 in
High: 1800 mm / 71 in
(more on request)
Opening/closing time 0.6 –1 s, depending on barrier element
dimensions
Drive technology MHTM
Control system MGC
Voltage 100–240 VAC,
50/60 Hz
Power consumption Maximal 45 W
Duty cycle 100 %
Housing material mDure
Housing dimensions
(L x W x B)
1300 x 1050 x 180 mm / 51.2 x 41 x 7.1 in
Enclosure rating IP 54
Weight About 265 lb per module
Temperature range −30 bis +55 °C



DRAWING & DIMENSIONS of the mWing

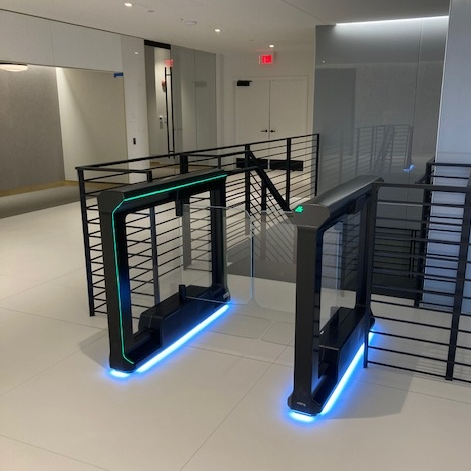

INSTALLATION

Installation Services Available
See our portfolio of work Here
