Description

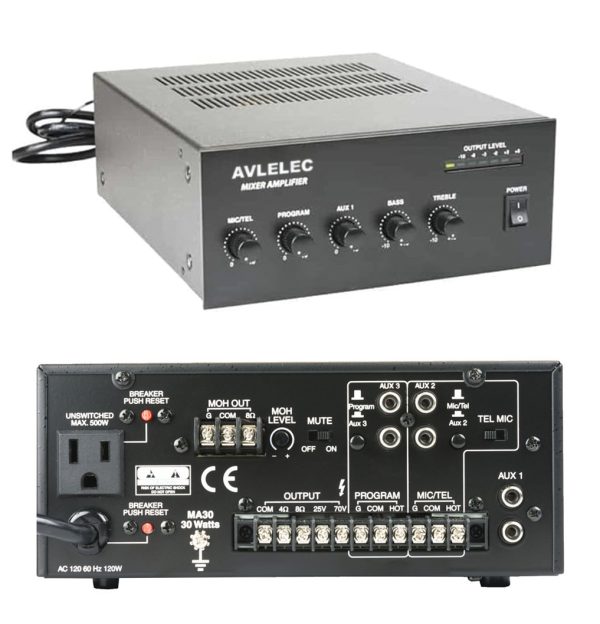

The AVLELEC MA30 Sound Masking Amplifier is a compact, standalone mixer with an integrated 30W power amplifier, designed to deliver versatile sound amplification for a range of audio applications. Featuring four speaker output options—4 ohms, 8 ohms, 25V, and 70V—via convenient screw terminals, the MA30 is ideal for installations requiring reliable sound distribution, including in sound masking systems.
Powered by 120VAC 60Hz, the MA30 includes built-in protection with a rear circuit breaker and a separate circuit breaker for the rear receptacle, ensuring safe and secure operation. The front panel offers three input channels—MIC/TEL, PROGRAM, and AUX1—allowing for flexible connectivity. Adjustable bass and treble controls enable fine-tuning of the audio output to suit various environments. Visual indicators include a power active LED and an output level LED, making it easy to monitor the unit’s performance.
The MA30’s compact black box housing measures just 8″ x 3.5″ x 11″, perfect for installations where space is limited. Rack mounting brackets are available for easy integration into a professional audio setup. This mixer-amplifier combo is an excellent choice for boosting the output of our SMG-2 Sound Masking Generator, or for any situation requiring efficient, high-quality sound amplification
FEATURES
- Compact (8″ x 3-1/2″ x 11″) mixer with 30W amplifier
- Main AC input is protected by a circuit breaker
- 30W maximum power output
- Single NEMA receptacle in rear (unswitched, always on)
- First channel (MIC/TEL) is switchable for microphone or telephone inputs
- Second channel (PROGRAM) is switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
- Third channel (AUX 1) is for AUX 1 dual combining RCA–phono connectors.
- AC Supply Voltage: 120VAC 60Hz ±10%
- First channel (MIC/TEL): Switchable for microphone or telephone inputs. When the mute switch is turned on, a dynamic microphone or telephone input will mute the Aux 1, Aux 3, or Program inputs.
- Second channel (PROGRAM): Switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
- Third channel (AUX 1): For AUX 1 dual combining RCA–phono connectors.
- AC Supply Voltage: 120VAC 60Hz (±10%)
- Power Consumption: 90W @ Rated Power
- Dimensions: 8.35 in. x 3.46 in. x 10.82 in.
- Speaker Level Outputs: Screw terminal strips, Main Output: 4 ohms, 8 ohms, 25V, 70V, 30W RMS, Music-On-Hold (MOH): 1W @ 8 ohms
- Mic Input: Screw terminals, 1mV @ 600 ohms balanced. (Phantom power not available.)
- Telephone Input: Screw terminals, (switchable, same terminals as mic input), 100mV @ 10k ohms balanced
- Program Input: Screw terminals, 100mV @ 10k ohms balanced
- AUX Inputs 1-3Dual parallel unbalanced RCA-phono jacks, stereo converted to mono, 150mV @10k ohms
- Frequency Response: 50Hz–20kHz (±3dB). Test signal inserted at AUX input.
