Description
The SecureTurn HT431P Portable Full Height Turnstile is the perfect marriage of convenience and cost savings. Our HT431 turnstile (with premier ARC mechanism) comes on a portable baseplate with electric operation in both directions, access control mounting plates, and preassembly labor complete. The HT431P is a great construction site turnstile because construction companies frequently need to move turnstile entrances as jobs change shape and evolve. Not to mention, many job sites do not have concrete pads in place to mount turnstiles, so a “no mounting solution” like our portable baseplates is required. Its versatile integration capabilities allow it to work seamlessly with nearly all access control readers and software, making it an ideal solution for high-security entrances and perimeter security.
Our HT431P includes the features you need most. Our streamlined design doesn’t include extraneous features like shipping containers, ramps, or over-engineered/bulky construction, allowing you to get a portable turnstile at a fraction of the cost offered by the competition. We even offer preassembly, so you can enjoy the convenience of having a fully assembled and functional portable full height turnstile delivered right to you. No assembly is required; simply use your forklift to position the preassembled turnstile in place, hook up your power and you are ready to begin using it.
HT431P Portable Single Turnstile – Data Sheet
HT431 Single Turnstile – Installation Manual
HT431P Portable Single Turnstile – Dimensions
FEATURES
- Full-Height Single Turnstile with Portable Base
- 2-Way Electronic Entry/Exit
- Key Override for electric units (both directions)
- Card Reader Mounting Plates in both directions
- Includes Pre-Assembly Labor option (assembled and mounted onto base)
- Passage Width: 31 inches
- Three-vein rotor at 120 degrees
- Operation can be configured via the control panel with a display
- Configure one-way or bi-directional traffic control
- Choice of fail safe (unlock on power loss) or fail secure (lock on power loss)
- Designed for use at pedestrian control points for secure entry into protected places
- Example environments for installation: entry and exit points for ticket control, airports/seaports, government facilities, border crossing points, museums, theatres, cinemas, exhibitions, show facilities, sports facilities, swimming pools, stadiums, schools, offices, dedicated areas in factories.
- ***BONUS! 3 Free Padded Safety Sleeves Included With Each Turnstile!***
FINISH
- Galvanized Finish (Standard)
- Powder Coated (RAL# Color)
- Powder Coated over Galvanized
ADDITIONAL OPTIONS
- Canopy Roof
- Status Indicator Lights Red/Green (electric units only)
- Additional Safety Sleeves (Safety Orange or Steel Gray)

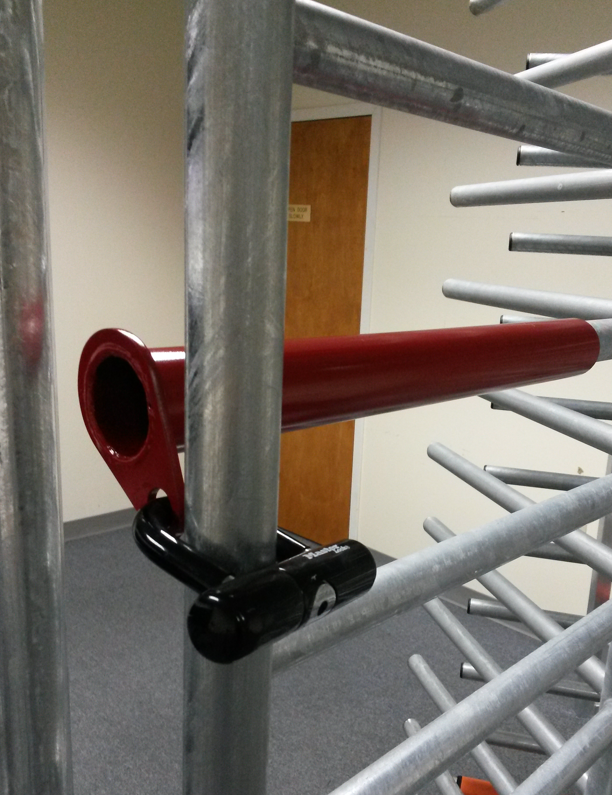

- Heavy-duty lock bar (includes HD padlock)
- Additional options available upon request
SPECIFICATIONS
- Choice of right or left handed direction
- Fully welded exterior components
- Heavy-duty lifetime construction
- Self-centering mechanism with hydraulic shock suppression
- Permanently lubricated bearings
- Clockwise, counterclockwise, or bi-directional passage
- Power supply input 100-240VAC (.7 amp) 50/60hz output
- 24VDC (1.1 amp) All components UL recognized
DRAWING & DIMENSIONS

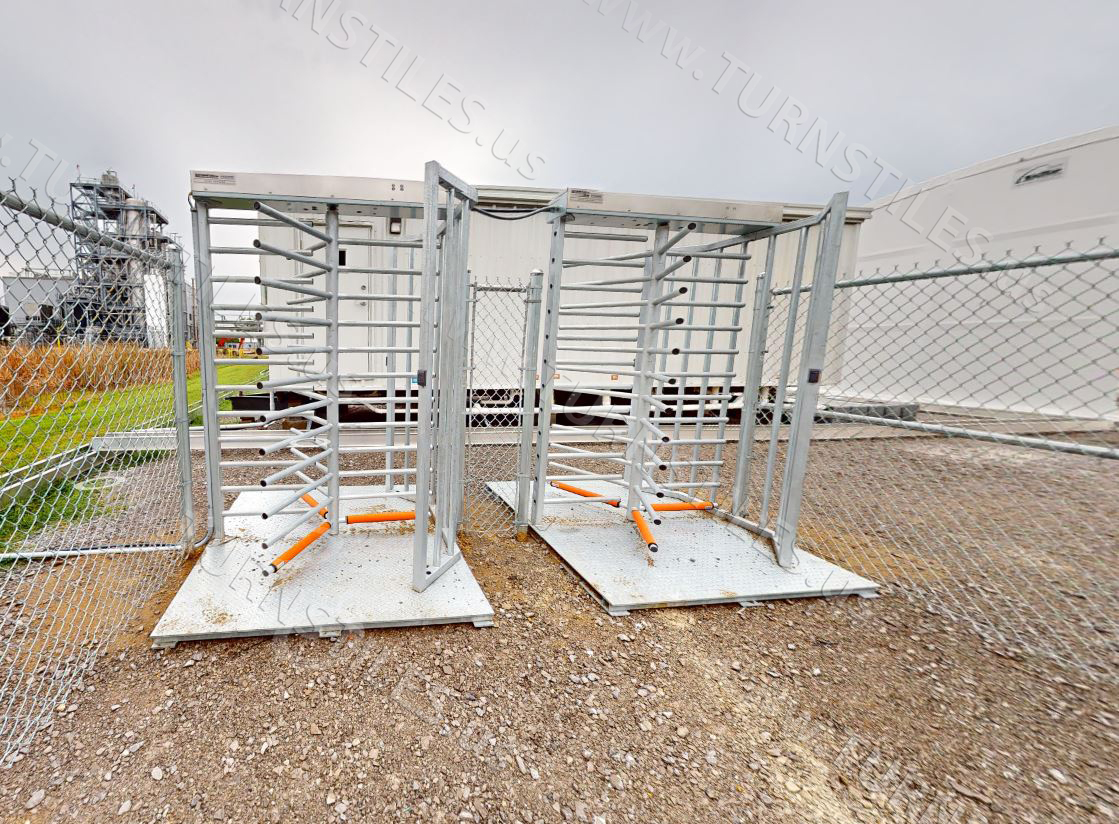

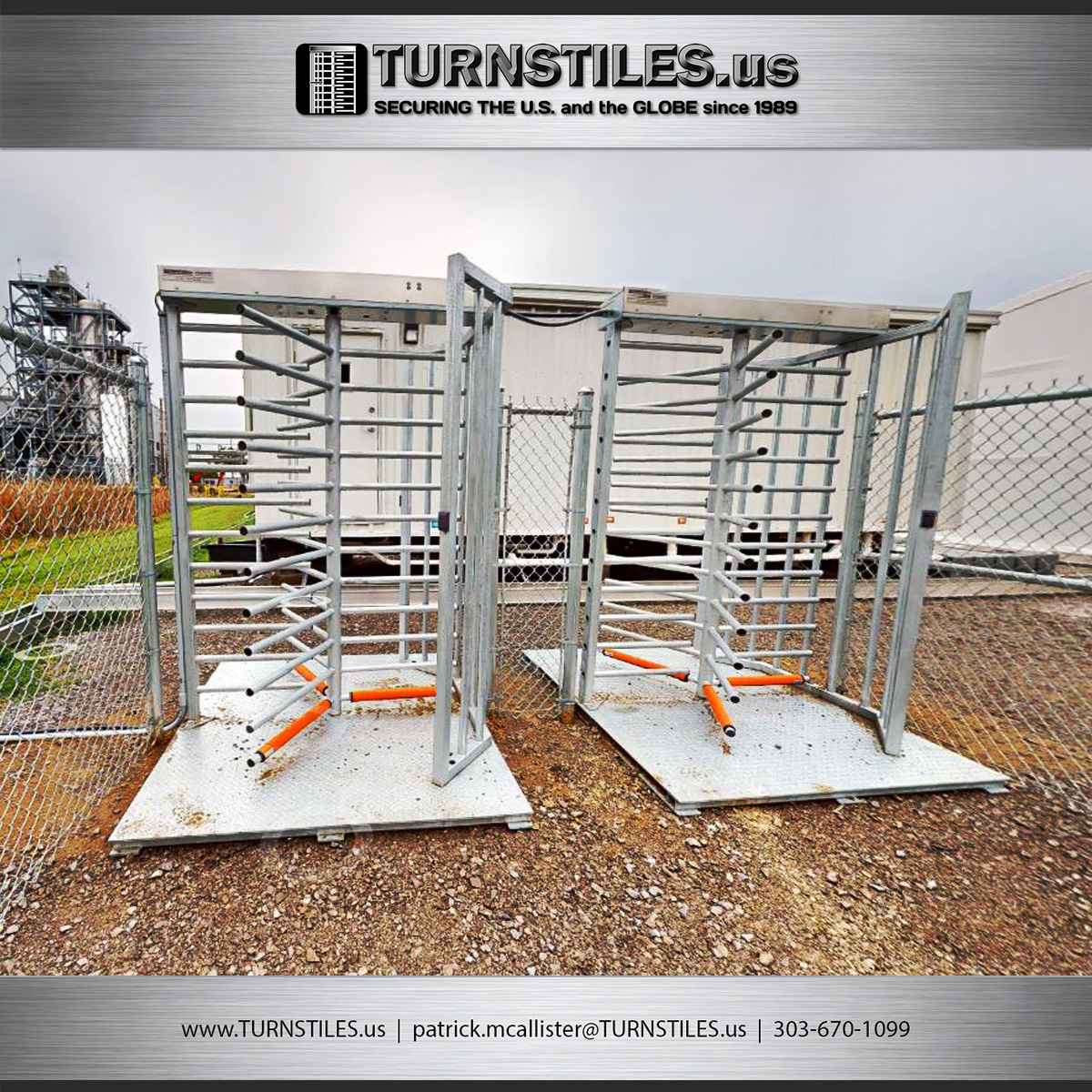

PHOTOS
Full Installation Services are Available.
See our portfolio of work here
** Please note, the listed price is for goods only. Shipping charges are separate.
***Shipping charges to be determined at the time of shipment. Lead times required for manufacturing.
Terms & Conditions
50% deposit is due at the time of order (to begin manufacturing) and the remaining balance is due at the time of shipping.
