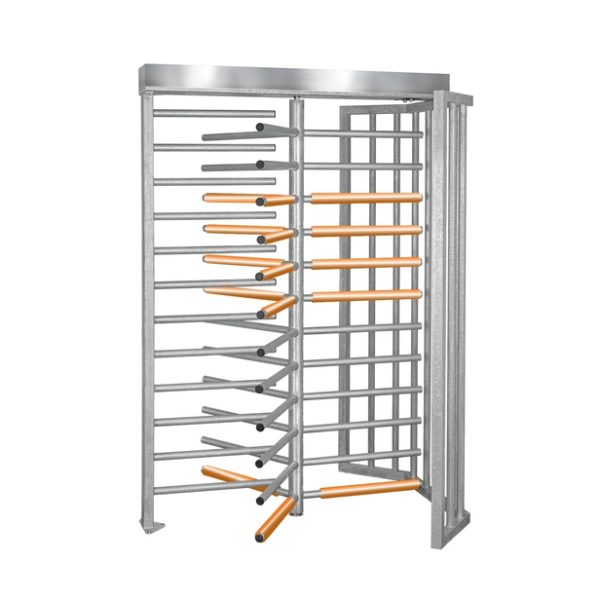

HT431 SecureTurn Full-Height Single Turnstile

Please Login for Pricing

The SecureTurn HT431 is a popular full-height turnstile because it is extremely dependable, easy to install, and made in our USA-based manufacturing facility. The HT431 offers a comfortable passage width of 31 inches and it can conveniently integrate with virtually any access control software or hardware. Select options and a finish to suit your environment!

***BONUS*** 3 Free Padded Safety Sleeves Included With Each Turnstile!







Login or Sign Up

Description

Our SecureTurn HT431 Single Full-Height Turnstile provides robust floor-to-ceiling security for high-risk areas. Its versatile integration capabilities allow it to work seamlessly with nearly all access control readers and software, making it an ideal solution for high-security entrances and perimeter security. Commonly used in a fence line, the HT431 is well-suited for outdoor applications, enhancing security and managing access to and from facilities. The HT431 is designed to complement our HTG-M full-height ADA gates, offering a cohesive look and consistent dimensions, which is ideal when accessibility is a concern. This turnstile is widely used in environments such as construction sites, factories, fulfillment warehouses, detention centers, and public transportation facilities, where it significantly bolsters perimeter security and access control. Whether indoors or outdoors, the HT431 Full-Height Turnstile is an excellent choice for any application requiring stringent security and effective access management.

HT431 Single Turnstile – Data Sheet

HT431 Single Turnstile – Installation Manual

HT431 Single Turnstile – Complete Dimensions



FEATURES

  • Full-Height Single Turnstile
  • Passage Width: 31 inches
  • Three-vein rotor at 120 degrees
  • Operation can be configured via the control panel with a display
  • Configure one-way or bi-directional traffic control.
  • Designed for use at pedestrian control points for secure entry into protected places
  • Example environments for installation: entry and exit points for ticket control, airports/seaports, government facilities, border crossing points, museums, theatres, cinemas, exhibitions, show facilities, sports facilities, swimming pools, stadiums, schools, offices, dedicated areas in factories.
  • BONUS! 3 Free Padded Safety Sleeves Included With Each Turnstile!



FINISH

  • Galvanized (standard)

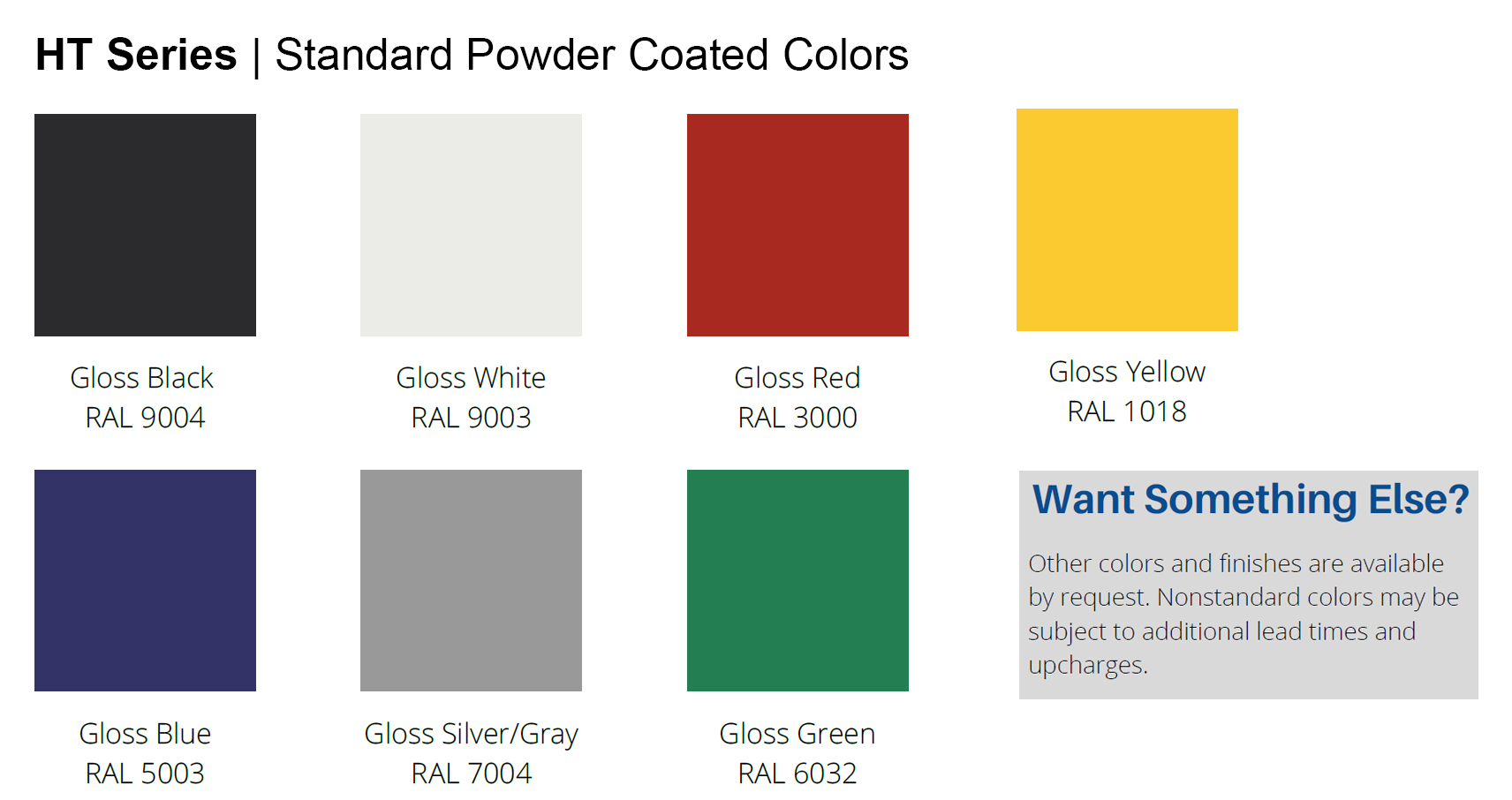

  • Powder Coated (RAL# Color)
  • Powder Coated over Galvanized



ADDITIONAL OPTIONS

  • Electronic Entry/Exit (Electronic locking module featuring heavy-duty 24 VDC solenoids that can integrate with virtually all access control software and hardware via a momentary dry contact)
  • Choice of fail safe (unlock on power loss) or fail secure (lock on power loss) for electric units only
  • Card Reader Mounting Plates (electric units only)
  • Key Override for electric or manual units (both directions)
  • Status Indicator Lights Red/Green (electric units only)
  • Safety Sleeves (Safety Orange or Steel Gray)
  • Heavy-duty lock bar (includes HD padlock)
  • Portable forklift base
  • Matching ADA Gate HTG-M
  • Matching Tandem Turnstile
  • Additional options available upon request



SPECIFICATIONS

  • Choice of right or left handed direction
  • Fully welded exterior components
  • Heavy-duty lifetime construction
  • Self-centering mechanism with hydraulic shock suppression
  • Permanently lubricated bearings
  • Clockwise, counterclockwise, or bi-directional passage
  • Power supply input 100-240VAC (.7 amp) 50/60hz output
  • 24VDC (1.1 amp) All components UL recognized



DRAWING & DIMENSIONS



INSTALLATIONS



Full Installation Services are Available.
See our portfolio of work here

** Please note, the listed price is for goods only. Shipping charges are separate.
***Shipping charges to be determined at the time of shipment. Lead times required for manufacturing.
Terms & Conditions
50% deposit is due at the time of order (to begin manufacturing) and the remaining balance is due at the time of shipping.



Additional information

Weight 600 lbs
Dimensions 63 × 55 × 90 in
