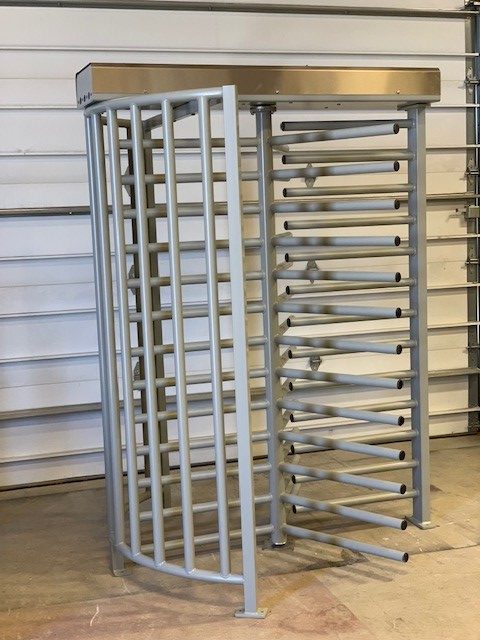

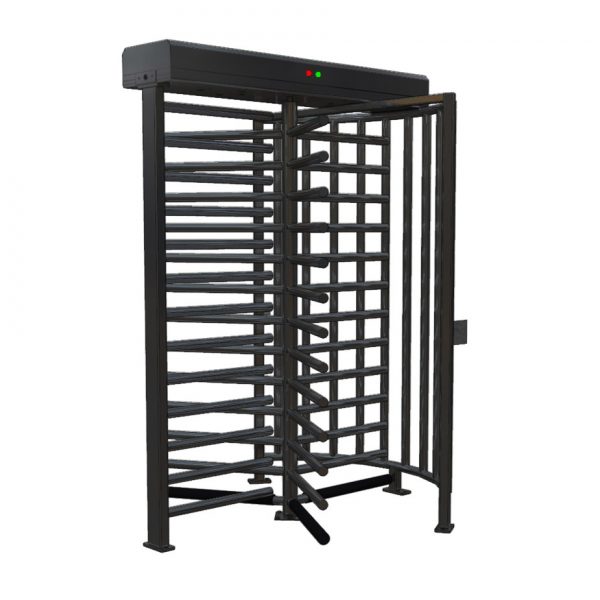

AG-30-T Full Height Single Turnstile

Please Login for Pricing

The AG-30-T is a heavy-duty, full-height high-security turnstile. The function of the AG-30-T is to provide controlled access when entering or exiting a facility where high flow traffic is present. It can achieve this both mechanically (no access control system/software, such as a pool gate where the passage would be used for only exiting and no entry), or electronically (with an access control system, card readers, fingerprint readers, etc for keeping track of who is on and off-site). It is constructed with pride in the USA.

See the documentation below for more information.

GV = Galvanized
PC= Powder Coated
SS= Stainless Steel





Login or Sign Up

Description

The AG-30-T is a heavy-duty, full-height high-security turnstile. The function of the AG-30-T Single Turnstile is to provide controlled access when entering or exiting a facility where high flow traffic is present. It can achieve this both mechanically (no access control system/software, such as a pool gate where the passage is used for exit only and no entry) or electronically (with an access control system, card readers, fingerprint readers, etc. for keeping track of who is on and off-site).  Our steel is sourced and turnstiles are manufactured in the USA. These industrial-grade turnstiles have weather-proof finishes in a variety of colors to match the surroundings.



DOCUMENTATION

Data Sheet

Product Guide

Architectural Specs

Dimensions – AG30-T Single Turnstile

Installation Manual

Electrical Drawing

Production Worksheet for Manufacturing

Correct vs. Incorrect Center Rotation

Finish Options / Powder Coating Color Chart

Annual Recommended Maintenance Instructions



STANDARD FEATURES

  • Full-Height Single Turnstile
  • Included:
    • (2) Card Reader Mounting Plates
    • (52) Plastic End Caps on all Arms
    • (1) Bidirectional Key Override Set (turnstile can be unlocked manually by key, in either direction for service or temporary events where locking isn’t required)
    • (1) Modular Locking Mechanism (fail-safe or fail-secure, clockwise or counterclockwise)
  • All Stainless Steel Hardware
  • Spline Shaft, Collar, Bearing, and Bottom Flange are Corrosion-Resistant Stainless Steel
  • Extra Thick Mounting Brackets for added Security
  • Durable Galvanized Finish
  • Made in America
  • Electrical Specifications:
    • Input voltage: 100-220 VAC
    • Frequency: 50/60 Hz
    • Operating Voltage: 30 VDC
    • Operating Current: 0,2A



ADDITIONAL OPTIONS



DIMENSIONS

  • AG-30-T Single
    • 66″ Length
    • 60″ Width
    • 90″ High
  • Shipping Weight
    • 750lbs









FINISH CHOICES

  • Hot Dipped Galvanized (Standard)
  • Powder Coated (Standard is Black. Choose Color. Custom colors by RAL# www.ralcolor.com)
  • Powder Coated over Galvanized
  • #304 Stainless Steel
  • Request quote: 316 Stainless Steel for corrosive or coastal environments
  • Request quote: Powder Coated over Stainless Steel
  • Turnstile Finish Options / Powder Coating Color Chart

ACCESS CONTROL PACKAGES



1. EntraPASS with Proximity Reader Package

2. EntraPASS with Fingerprint Scanner Package

3. Photo-ID Badging Package





INSTALLATIONS

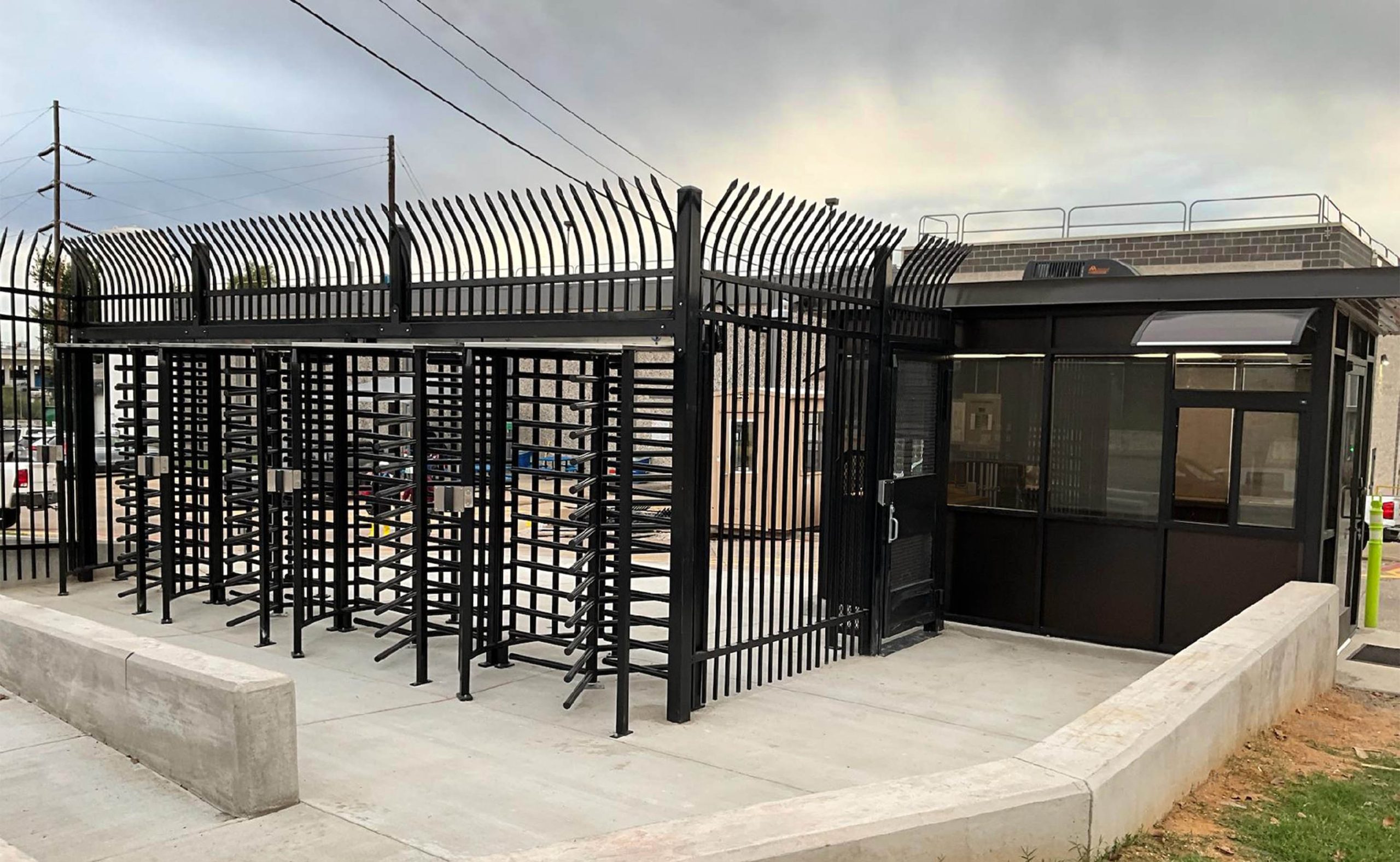

ag30t usa turnstile installation

Single Turnstile Installation with ADA Gate and Filler Barrier Add Ons



Contact TURNSTILES.us for installation information.
See our turnstile installation portfolio here.





*Please note the price listed is equipment only, and freight will be charged separately. Please contact us for a freight quote.



Additional information

Weight 750 lbs
Dimensions 66 × 60 × 90 in
Finish

Galvanized, Powder Coated (Black), Powder Coated (Black) over Galvanized, 304 Stainless Steel

Controls

Mechanical, Electric One-way, Electric Two-Way
