Description

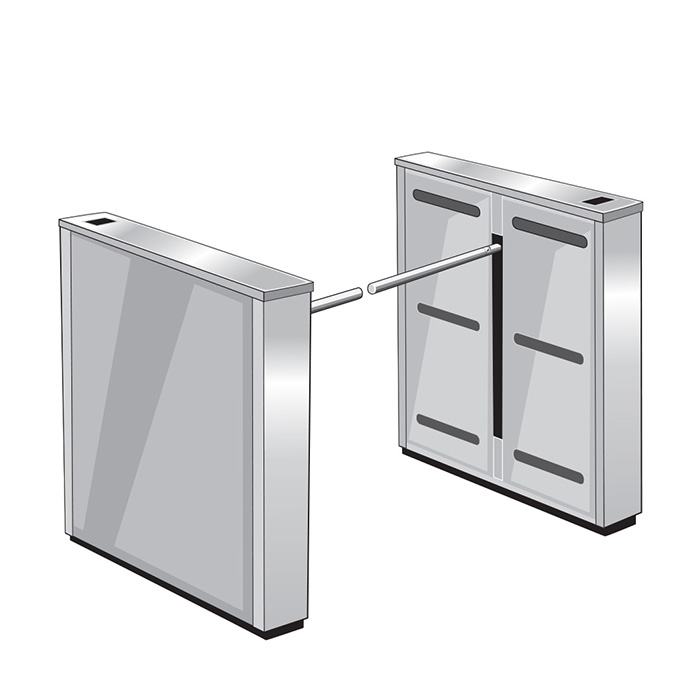

The EZ Lane Drop Arm is our entry-level barrier turnstile with a single arm that quickly pivots down into the cabinet to allow entry. The shallow cabinet depth and functional design allow this model to work well in restricted spaces. The arm is a visual deterrent to restrict entry and must be fully lowered to allow passage. It has slim barrier footprints, good for small spaces, and the stainless steel finish complements any setting.
FEATURES
- Mid-range optical turnstile
- Basic barrier security
- Drop arm
- Bi-directional
- Card stacking is optional
- Tailgate detection
- Crawl detection
- Audible & visible alerts
- Flat or rounded ends
- Compact design, small footprint
- Standard finish: brushed stainless steel
OPTIONS

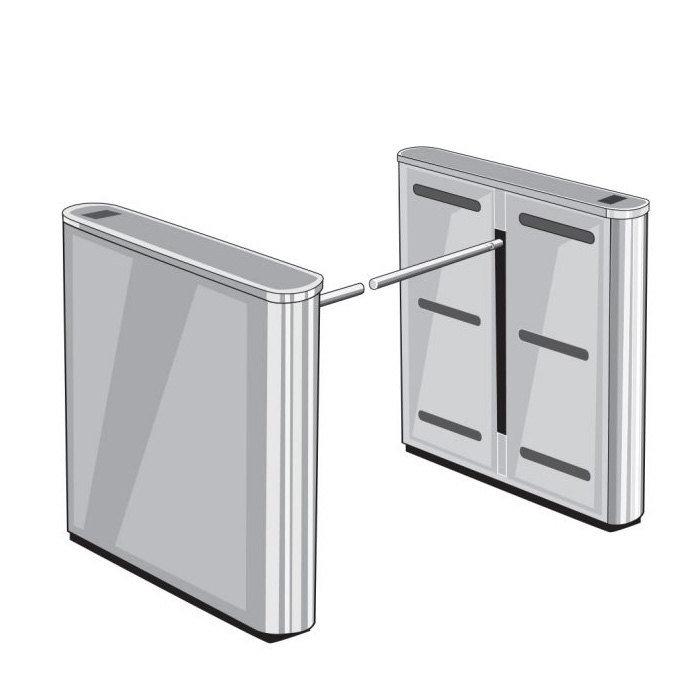

- With Round Ends OR Flat Ends
- Add Access Control Readers
- Climb-over detection
- Access control software
- Custom finish options

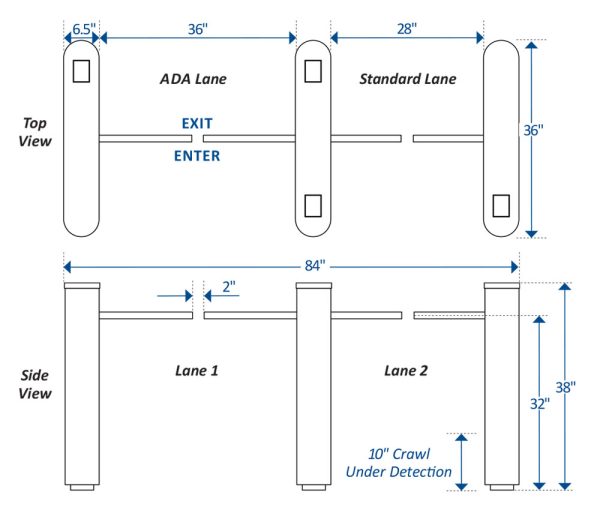

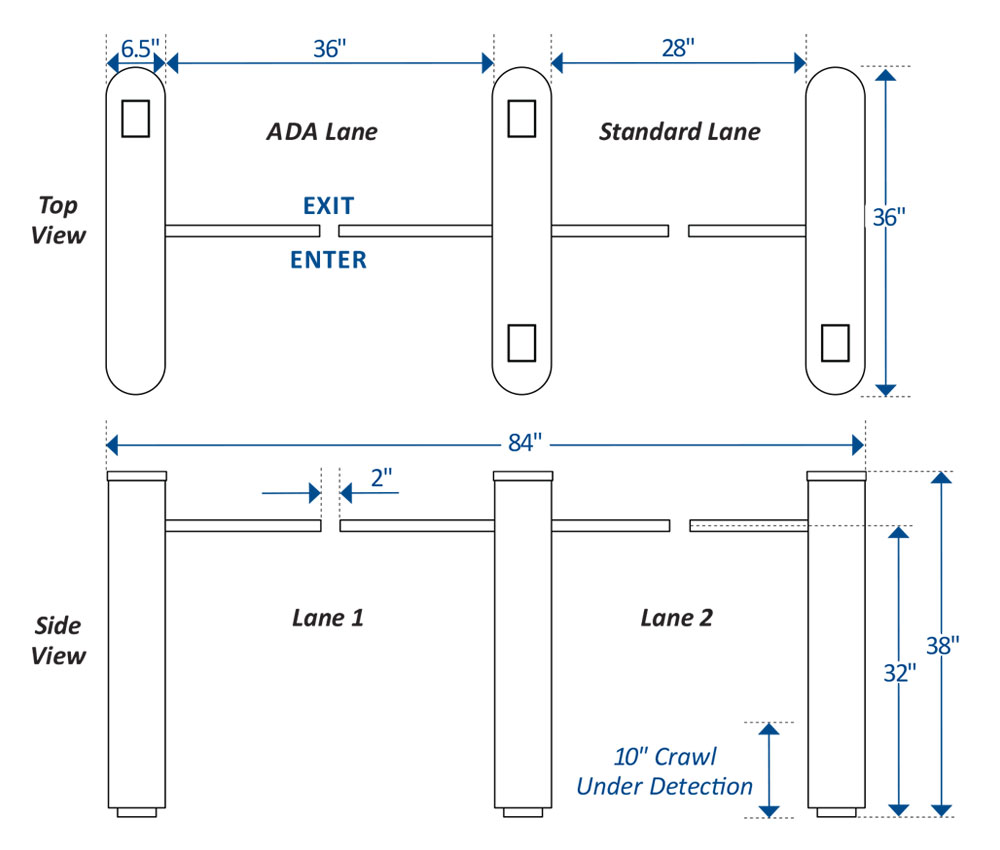

DRAWING & DIMENSIONS
| Standard Inch | Standard MM | ADA Inch | ADA MM | |
| Lane Width | 28 | 711 | 36 | 914 |
| Pedestal Length w/ Rounded Ends | 36 | 914.4 | 36 | 914 |
| Pedestal Length w/ Flat Ends | 33 | 838 | 33 | 838 |
| Pedestal Height | 38 | 965 | 38 | 965 |
| Pedestal Width | 6.5 | 165 | 6.5 | 165 |

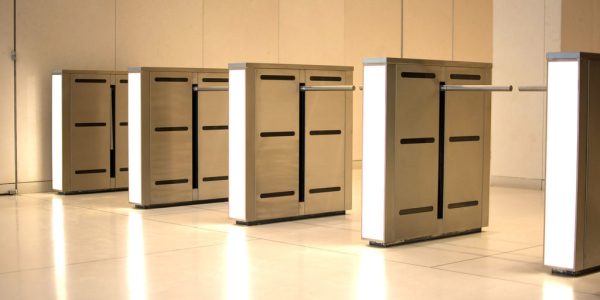

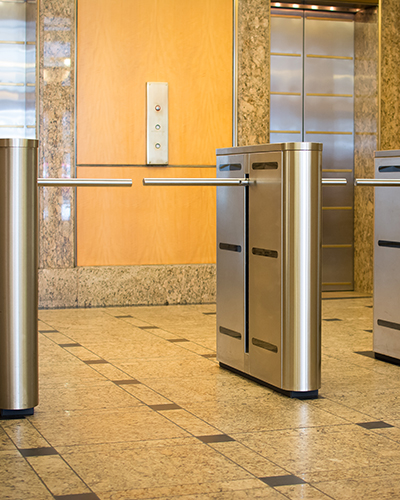

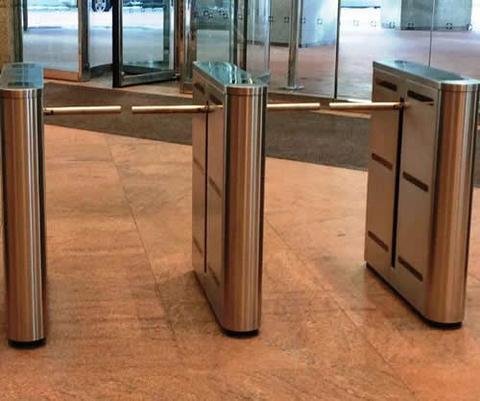

INSTALLATIONS
