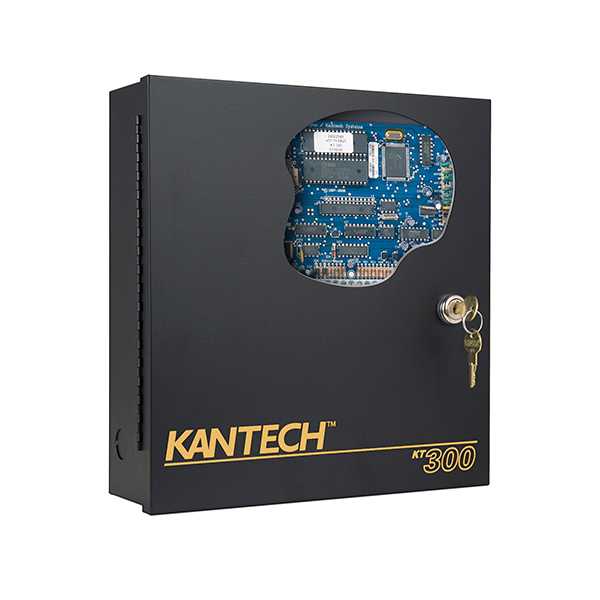

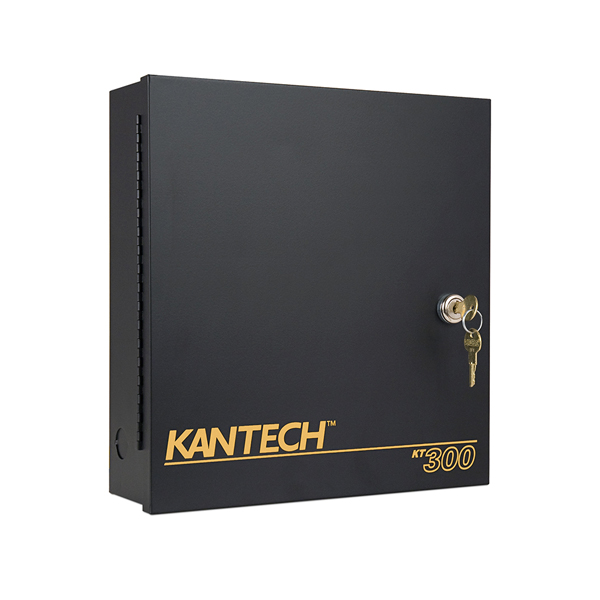

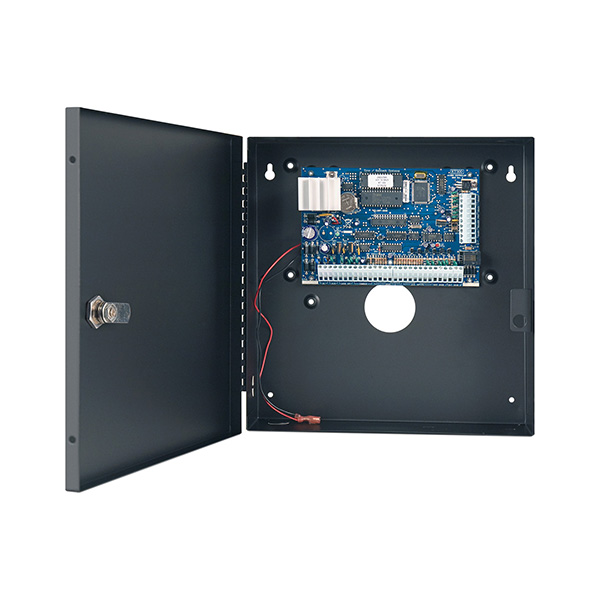

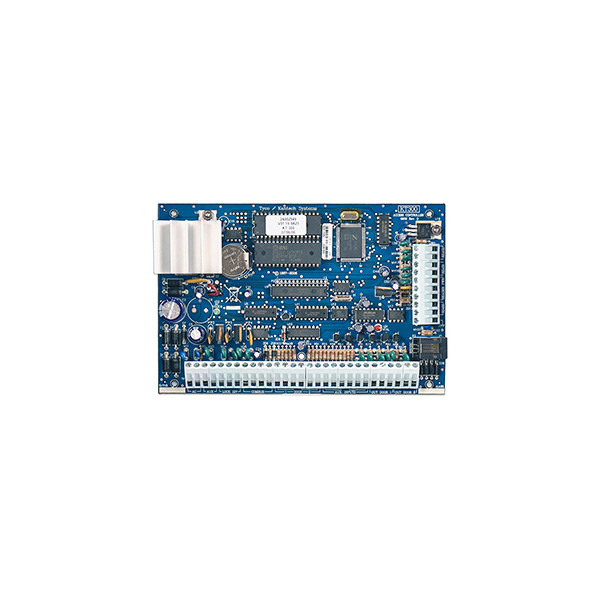

EntraPASS KT-300 Controller

Please Login for Pricing

Login or Sign Up

Description

The KT-300 door controller supports up to two readers, which can be installed on separate doors. It provides connections for all peripheral devices necessary for a complete access control system and can be linked with other door controllers to provide control over millions of doors. Stand-alone mode protects against power or system failures and the system stores cardholder and event data, which is automatically transmitted back to the EntraPass system once the network connection is restored. Flash memory allows for firmware updates from an EntraPASS Workstation in just a few minutes. Built-in Combus expansion means that relay, input, and output modules can be added to connect HVAC systems, elevators, motion detectors, and more. The Combus is a communication protocol that is integral to the KT-300. It uses a four-conductor cable bus to which several expansion modules can be connected.

Data Sheet – KT-300 Controller

— 2-Reader Controller
— 2 Lock Outputs / 12vDC
— 4 Relay Outputs (for Alarms or Device Control)
— 8 Input Monitoring Points

FEATURES

  • Controls 2 doors and easily links to a network
  • Update the firmware directly from the system workstation
  • Fast, up to 115,200 baud
  • Ready to go, no DIP switches or jumpers to set
  • 5V and 12V reader power
  • Interfaces with an external alarm system
  • Supervises battery conditions and reports low battery/no battery status to the system
  • Automatic trouble reporting
  • All power outputs are individually protected against short circuits and surges by a self-resetting PTC
  • Choice of two memory capacities, 128K or 512K
  • Compatible with EntraPass Access Control Software v6.02 or higher
  • Compatible with Full-Height, Waist-High, and Optical Security Turnstiles and Doors



**Programming is performed by www.TURNSTILES.us, Inc. technicians and includes integrating access control devices and selected options purchased from www.TURNSTILES.us and www.EntraPass.com.



For More Information and Services Contact TURNSTILES.us
