FastPass FP500 Tripod Turnstile

Please Login for Pricing

Login or Sign Up

Description

The FastPass Series is made for years of reliable service in high-traffic/volume applications like stadiums,  convention centers, landmarks and military bases. The cabinets are constructed of heavy 14-gauge, 300 series satin stainless steel and feature our 6500 Series Control Head (with auto-indexing and shock suppression technology). Thousands are currently in use at leading pro-sports venues, amusement parks and high-profile attractions worldwide. The FastPass is the ticket to managing large crowds with reliability and speed.

Data Sheet – FP500 FastPass Series Tripod
Installation Manual – FP500 FastPass Series Tripod
Production Worksheet for Manufacturing – Tripod



More items in this series:
Data Sheet – FP500-P Portable Turnstile
Data Sheet – FP500-C Coin Accepting
Data Sheet – FP500-ADA Swing Gate
Data Sheet – Tokens for Coin Acceptor

Installation Manual – FP500-ADA Swing Gate
Installation Manual – FP500-C Coin Accepting
Production Worksheet for Manufacturing – Swing Gate

OPTIONS

  • Home Position Switch – Additional limit switch provides an SPDT output while at home for security integration
  • Proximity Sensor Upgrade – Replaces limit switches with proximity sensors for part longevity
  • Bidirectional Key Override Set for Manual or Electric 2-Way Units – Available only as electronic 2-way fail-open
  • Daylight Visible Indicator Lights – A tri-color (R/G/Y) indicator light. Most models only use R/G.
  • 8 Digit Key Resettable LCD counter with 7 year Lithium Battery
  • Single or Double Push Button (installed on-site)
  • One Channel 900 MHz Wireless Receiver (one per direction)
  • One or Two Button Wireless Key Fob Transmitter
  • FP500-C Upgrade to Bill Collector
  • Battery Back-Up – 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger

FINISH

  • 304 Stainless Steel
  • 316 Stainless Steel Upgrade (only available for large quantity orders)

CONTROLS

  • Manual Both Ways
  • Manual One Way / No Passage in Opposite Direction
  • Electronic One Way / Free Exit
  • Electronic One Way / No Exit
  • Electronic Both Ways
    *Each electronically controlled direction can be configured as FAIL LOCK (fail secure) or FAIL OPEN (fail-safe) upon power loss



DRAWINGS & DIMENSIONS

*See Data Sheets above for more details.

FP500 Tripod:

  • Item weight: 175lbs each
  • Height: 38.062″ (966.775mm)
  • Width (standard): 23.437″ (595.3mm)
  • Depth (standard): 27.312″ (693.725mm)

INSTALLATION

Above: FP500 with card reader mounted on side. See more from this installation: Fontainebleu, Miami Beach, FL

Installation is available throughout the USA and the globe. Contact us for a quote!



Additional information

Weight 200 lbs
Models

FP500 (Tripod), FP500-C (Coin), FP500-T (Ticketbox), FP500-P (Portable), FP500-ADA, FP500-ADA-C (Coin), FP500-ADA-M (Motorized), FP500-BLK (Blank), FP500-ADA-M-P-C (Motorized, Portable, Coin)

You may also like…

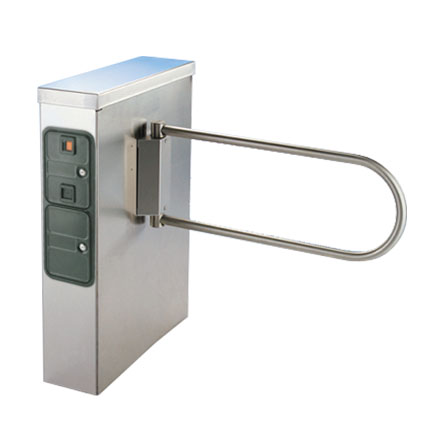

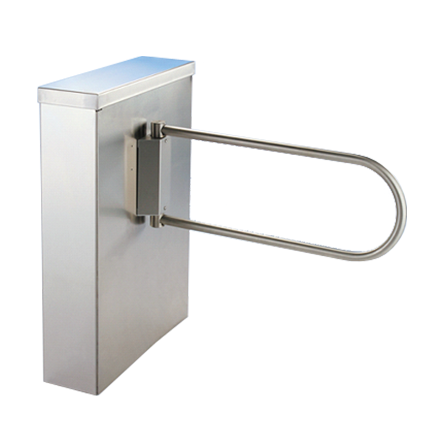

  • FastPass FP500-ADA Waist High Swing Gate
