Description
The Cold Weather Package from TURNSTILES.us is the essential accessory to ensure optimal performance of your turnstile in freezing temperatures. This innovative package includes a thermostat-controlled heavy-duty heater and insulation for the mainframe channel and cover, designed to keep your turnstiles operational and protected from harsh elements.
The thermostat-controlled heavy-duty heater ensures that your turnstile remains functional even in the coldest of temperatures, providing reliable performance year-round. The insulated mainframe channel and cover further protect your turnstile from extreme weather conditions, ensuring its durability and longevity.
Whether you have full-height or waist-high turnstiles, there is a cold weather package available to suit your needs. Upgrade your turnstile with the Cold Weather Package today and ensure that your outdoor equipment remains operational and protected in any weather condition.
Data Sheet – Cold Weather Package
FEATURES

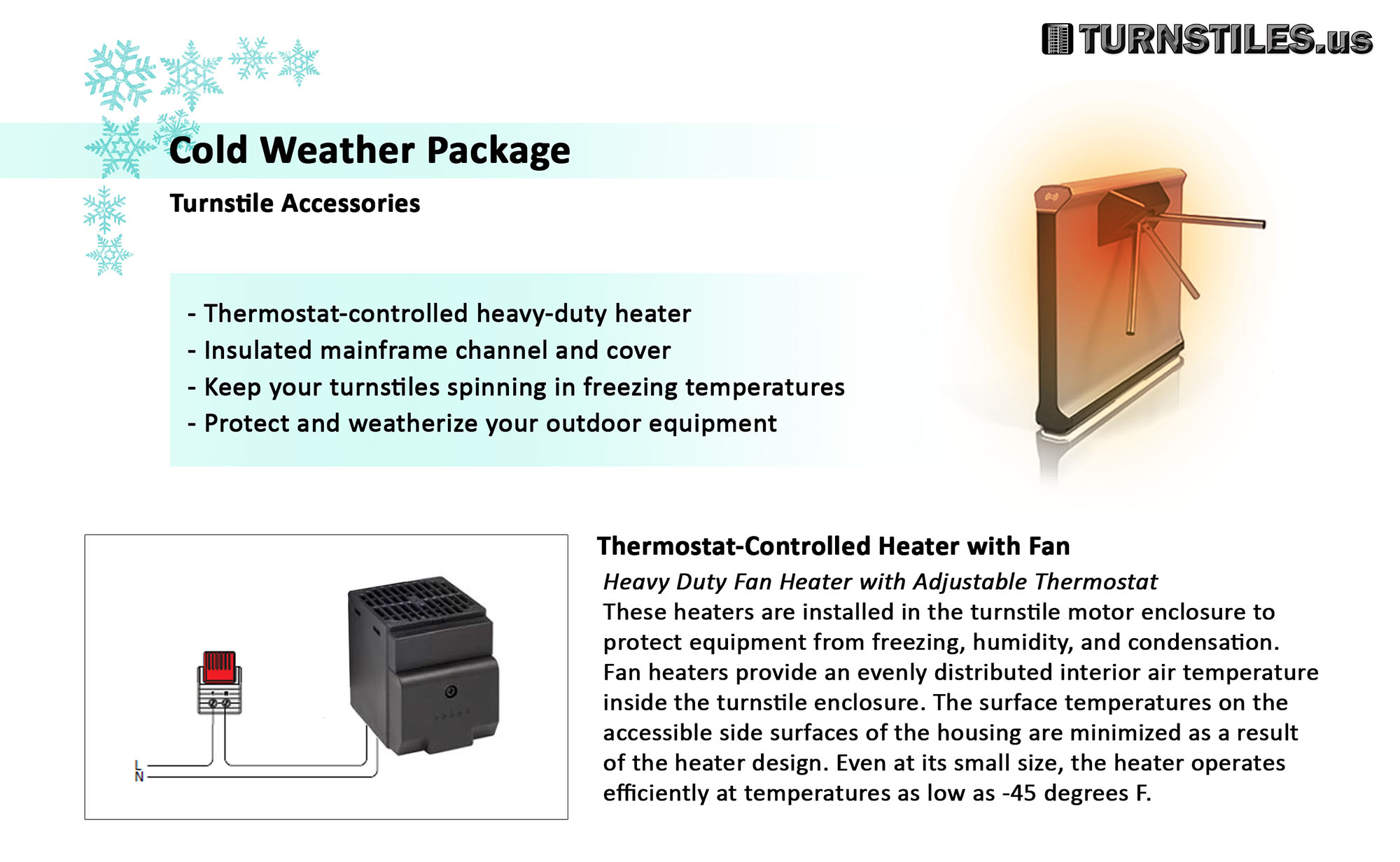

- Thermostat-Controlled Heater: The package includes a heavy-duty heater with an adjustable thermostat (250W, 120V AC). Installed in the turnstile header enclosure, these heaters protect equipment from freezing, humidity, and condensation buildup, ensuring reliable operation and preventing premature failure. The dial-adjustable thermostat automatically activates the heater when the temperature drops below your set temperature and deactivates it when it rises above your set temperature.
- Insulated Mainframe and Cover: The package includes reflective double-insulated air bubble panning installed inside the turnstile header, lining the main channel and cover. This insulation material features an outer layer of highly reflective film (96% reflectivity) and an outer layer of white polyethylene. Two inner layers of insulating bubbles resist conductive heat flow, while a center layer of polyethylene provides the product with high reliability and strength. Extensive certification testing ensures compliance with standards such as ASTM E84 (Class A / Class I) and ASTM C4 l l.
- Keep Your Turnstiles Spinning in Freezing Temperatures: With the Cold Weather Package, your turnstiles can continue to operate smoothly even in freezing temperatures, ensuring uninterrupted access control and security. It protects your outdoor equipment from the damaging effects of harsh weather conditions, including freezing temperatures, humidity, and condensation, prolonging the lifespan of your turnstiles and reducing maintenance costs.
- Versatile Application: The Cold Weather Package is available for both full-height and waist-high turnstiles. Please let us know the model you will be integrating so we can provide you with the appropriate package.
SPECIFICATIONS
Heater
- Heater Type: Strip
- Wattage: 250W
- Watt Density: 10 W/sq.in. Voltage: 120V AC
- Electrical Phase: Single Current: 2A
- Temperature Control Type: Adjustable
- Temperature Control Method: Dial
- Temperature Control Range: 30° F to 150° F
- Maximum Heat Output: 1,040° F
- Power Source: Electric
- Electrical Connection Type: Hardwire
- Wire Connection Type: Screw Terminals
- Screw Terminal Thread Size: 8-32
- Overall Size: 8 1/8 * 1 1/2 * 3 1/2
- Mounting Fasteners Included: No
- Mounting Hole Diameter: 3/8”
- Cover Material: Steel
- Sheath Material: 304 Stainless Steel
- USMCA Qualifying: No
- Schedule B: 851680.0000
- ECCN: EAR99
- Country of Origin: USA
Insulation
- Temperature Range: -60 to 180 F
- Nominal Thickness: 5/16 inch (.312)
- Weight: 0.771 oz./sq. ft.
- Flame Spread Index (ASTM E 84): Less than 25
- Smoke Developed Index (ASTM E 84): Less than 50
- Fire Rating: Class A/Class 1
- Linear Shrinkage: None
- Reflectance (IR): 96%
- Water Vapor Transmission (ASTM E 96): 0.02
- Puncture Resistance: 60 lb./in.
- Mold and Mildew: No Growth
- Emittance: 0.04
- Tensile Strength: 3.7 N/mm
- Pliability: No Cracking
- Extensive Testing Includes: ASTM E84, Class A / Class 1, ASTM C411 Passed
- Benefits: 30 to 40% less costly than other materials
- Class A/ Class l Fire Rating Not affected by moisture or humidity
- Non-toxic / non-carcinogenic lightweight and clean
- Country of Origin: USA
INSTALLATIONS
Cold Weather Packages are installed in the tripod turnstiles at Big Sky Ski Resort, Montana
*Contact TURNSTILES.us for a quote. See our portfolio of work Here.
