Description

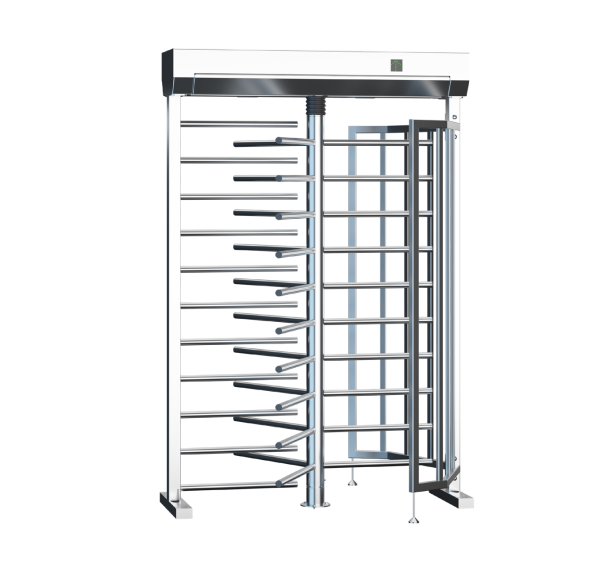

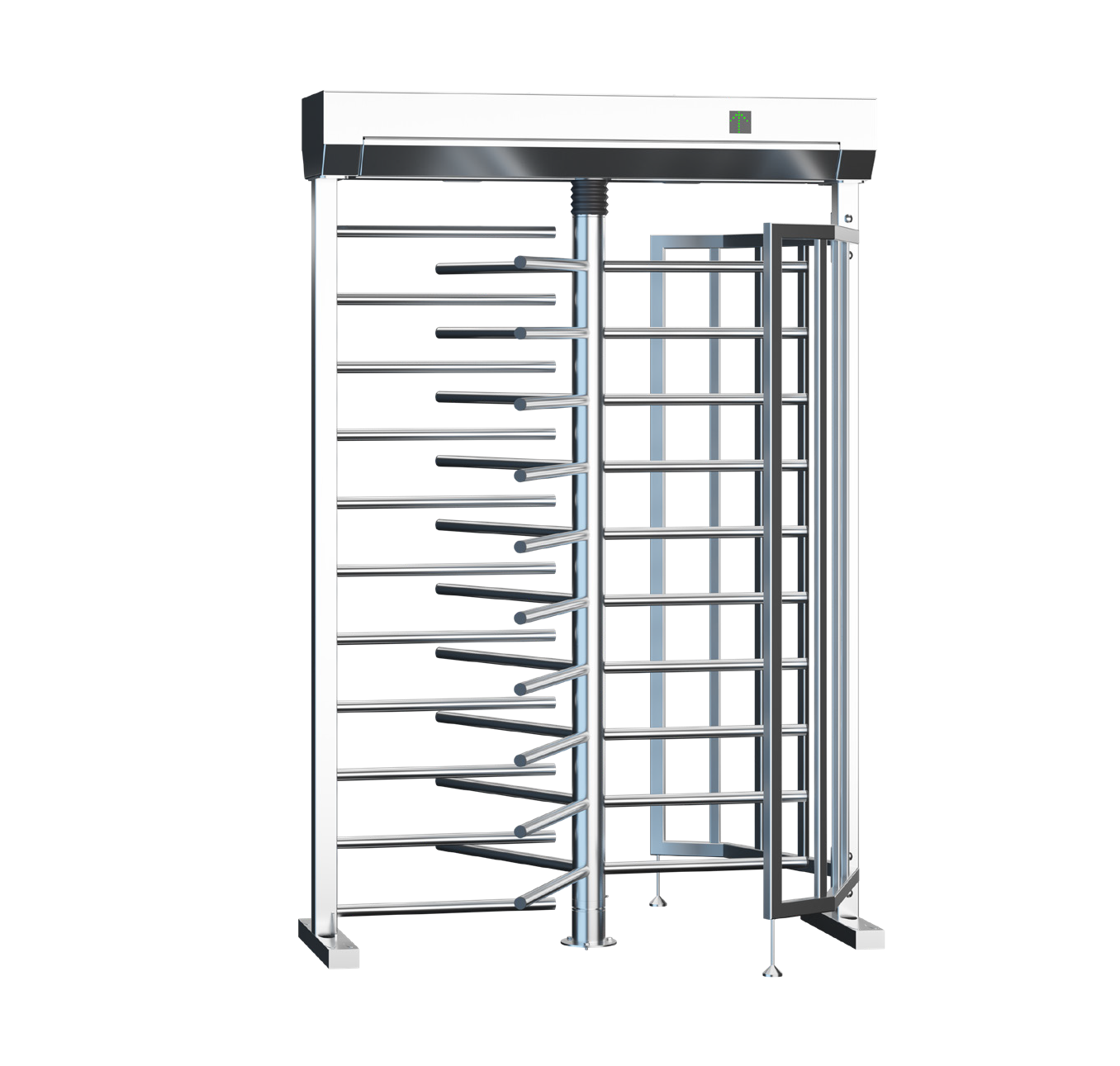

BL1 Series Compact Single Full-Height Turnstiles are your solution for secure and efficient pedestrian access control. Designed with durability and versatility in mind, these single, full-height turnstiles offer options for controlled rotation in either direction, ensuring smooth passage for users. Compatible with various access control systems, including any type of reader (sold separately) or push-button mechanism for easy operation, these turnstiles adapt to your security needs. Choose from a range of finishes to complement the environment. Plus, enhance functionality with optional add-ons such as a canopy roof for weather protection, a portable base for flexible placement, matching ADA swing gates for accessibility, and filler barrier posts for enhanced security. Built to withstand industrial demands while prioritizing user convenience, these turnstiles are the ideal choice for safeguarding your premises.
Data Sheet – BL1 Series Full Height Turnstiles (ZA3-BL-1-3 / GA3-BL-1-3 / MA3-BL-1-3)
FEATURES
- Full-Height Single Turnstile
- Passage Width: 25.4 inches
- Three-vein rotor at 120 degrees
- LED pictograms light up green/red for active/inactive traffic
- Operation can be configured via the control panel with a display
- Configure one-way or bi-directional traffic control.
- Rotor position detection system ensures precise locking and smooth rotation.
- Fail-Safe, the turnstile unlocks and spins freely in the event of power loss.
- Designed for use at pedestrian control points for secure entry into protected places
- Example environments for installation: entry and exit points for ticket control, airports/seaports, government facilities, border crossing points, museums, theatres, cinemas, exhibitions, show facilities, sports facilities, swimming pools, stadiums, schools, offices, dedicated areas in factories.
CONTROLS/MODELS
- ZA3-BL-1-3: ELECTROMECHANICAL (Electronically Controlled and Motorized)
- GA3-BL-1-3: ELECTROMECHANICAL (Electronically Controlled)
- MA3-BL-1-3: MECHANICAL (Mechanical)
SPECIFICATIONS
- Power supply voltage: 24 VAC (or Mechanical N/A)
- Minimum power consumption, peak current:
- 5A, 130 – ZA3
- 2A, 90 – GA3
- Mechanical N/A
- Control signal: max. 1 sec (or Mechanical N/A)
- Feedback signal: Normally Open/Normally Closed (or Mechanical N/A)
- Operating temperature: -20° to +50° C [-4° to 122°F]
- Storage temperature: -30° to +60° C [-22° to 140°F]
- Relative humidity: 10-80%
- Operating environment: inside/outside of buildings
- IP protection rate: IP 43 (can be increased at the stage of ordering with upgraded finish)
- Net Weight: 500lbs
- Dimensions in Packaging: 103″ x 69″ x 57″
FINISH
- Standard in Stainless Steel (INOX)
- Powder Coated (RAL# Color)
- Galvanized
- Powder Coated over Galvanized

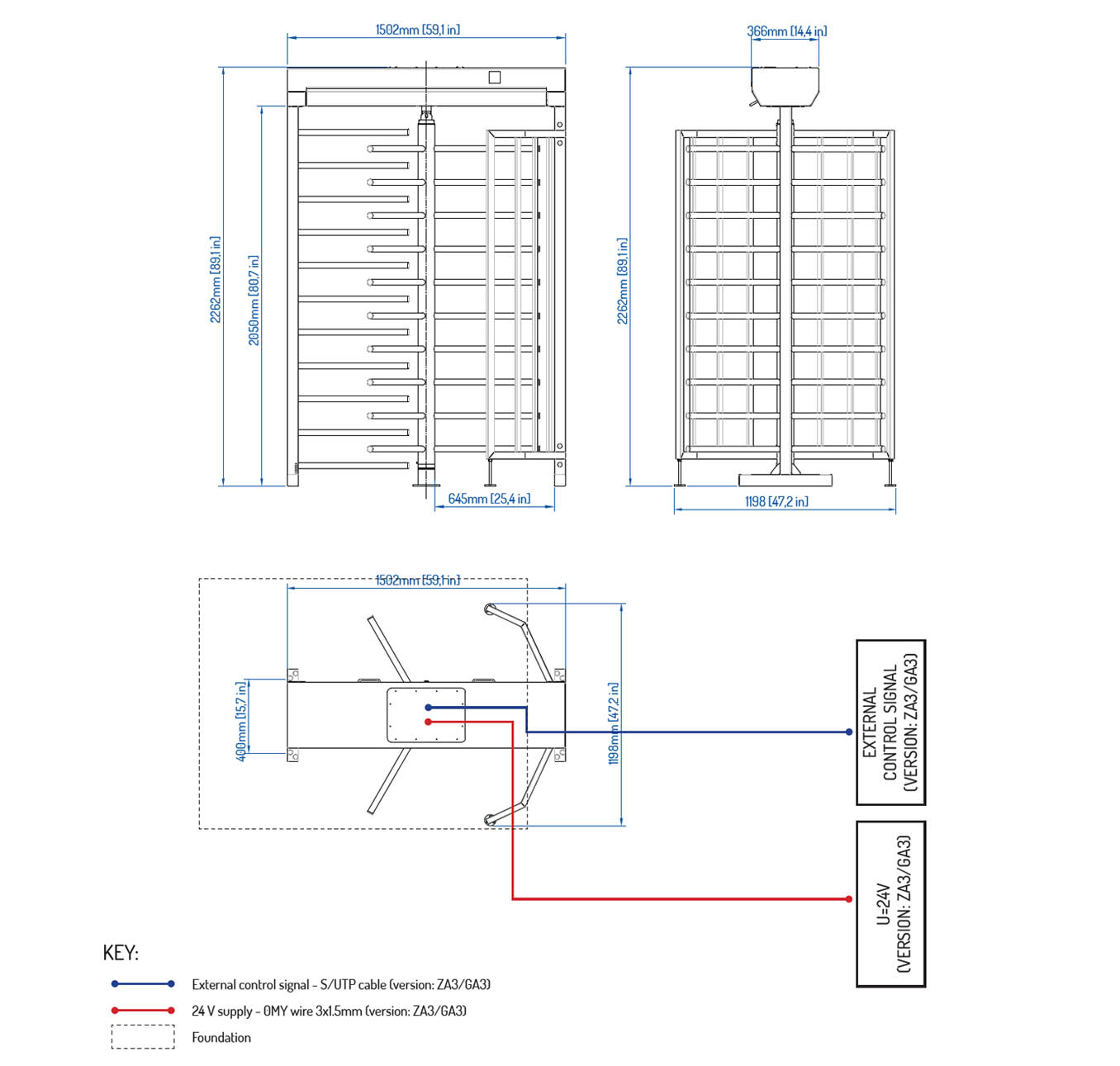

DRAWING & DIMENSIONS

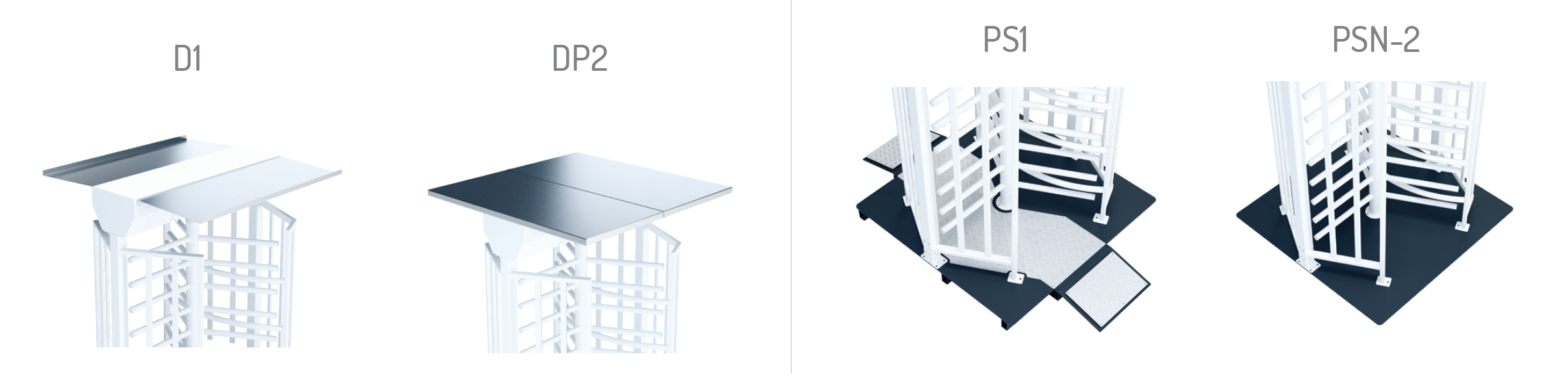

ADDITIONAL OPTIONS
INSTALLATION
Full Installation Services are Available.
See our portfolio of work here
** Please note, the listed price is for goods only. Shipping charges are separate.
***Shipping charges to be determined at the time of shipment. Lead times required for manufacturing.
Terms & Conditions
50% deposit is due at the time of order (to begin manufacturing) and the remaining balance is due at the time of shipping.
