Description

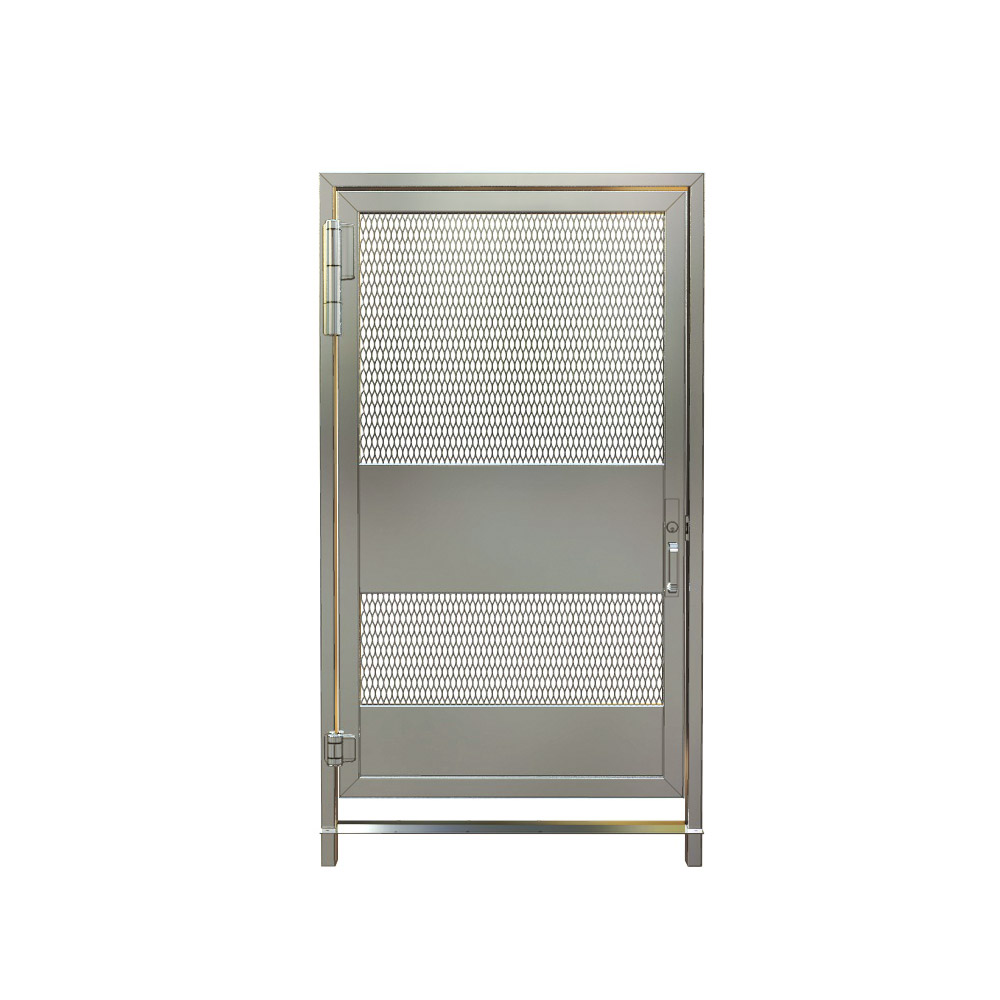

This full-height, extra-wide 48″ ADA-compliant gate is designed with security and simplicity in mind. Ideal to place next to one of our Full Height Turnstiles with hardware to attach, It can be configured a number of ways. A door strike with a panic bar, magnetic lock with a push-to-exit button, or a typical door handle with a key and mortise lock. With tough welded steel or stainless steel construction, a #9 mesh to resist tampering, and a heavy-duty fully adjustable hydraulic self-closing hinge, this gate is sure to stand the test of time. It can be seamlessly fitted with turnstiles, card readers, counters, cameras, EntraPASS Access Control Software, and more. Matching fences and filler panels are also available.
Data Sheet – AG Series Full-Height Gates
AutoCAD Equipment Detail & Dimensions
Specification – Electric Strike for AG Series Gates
Color and Finish Chart
Production Sheet – Swing Gates
STANDARD FEATURES
- 48” Extra-Wide Passage Width
- Comes fully assembled
- Durable galvanized finish
- All stainless-steel hardware
- Internal wiring chase for access control wiring
- Right- or left-hand swing
- Pull/Rim Exit, Standard Hardware:
- Weatherized rim exit device (push bar)
- Locinox mammoth 180 gate closer hinge
HARDWARE
- Pull/Rim Exit (Standard Hardware):
- Detex Weatherized v40 series panic bar
- Detex 03an pull trim
Additional Options:
- Pull/Strike/Rim Exit:
- Detex Weatherized v40 series panic bar
- Detex 03an pull trim
- Trine en850 electric strike
- Handle/Maglock/Sense bar:
- Securitron DSB sensebar
- Securitron m62 maglock
- Pull handle
- Electric Rim Exit
- Von Duprin 99 rim exit device
- Von Duprin 996l Electric trim
- ADA Gate Operator
- Detex A019 or TORXUN gate operator
ADDITIONAL OPTIONS
- LED Accent Light: White light that mounts onto frame
- Power Supply: In a weatherproof enclosure that mounts to the gate frame
- DC-Access Relay: Operates strike or maglock
- Spike Strip: Extra deterrent at top or sides of gate frame
- Alarm Panic Bar: Local alarm in panic bar
- Entry Sentry: Anti-tailgating detection
- Automatic Motorized Door Operator: Opens and closes the door hands-free
- 57×72 Portable Base for AG48-ADA
- 57×72 Portable Base w/Ramps for AG48-ADA
- Anti-Reach Barrier: Special barrier to keep people from reaching around the turnstile to open the gate
- Vertical Bars Style
- Lexan Infill Style
- Matching Filler Barriers
- Card reader mounting box and gooseneck pedestal
DIMENSIONS
- Height: 7’7″
- Width: 4’5″
- Depth: 4″
FINISH OPTIONS
Finish Options:
- Galvanized Steel (Standard)
- Powder Coated (Choose color. Custom color by RAL# www.ralcolor.com)
- Powder Coated over Galvanizing (Choose color)
- Stainless Steel
Base Materials Used:
-4”x2” 11 gauge rectangular tube
-3”x2” 14 gauge rectangular tube
-11 gauge formed sheet metal
-#9 flattened Expanded Sheet metal
–Stainless steel construction available
INSTALLATION
ADA Access is Required within 10 feet of a turnstile entrance. The above wide gates come in various styles: vertical bars, mesh, solid, or clear lexan.
Installation services are available now: See our portfolio here.
Shipping is not included and will be charged separately. Contact us for a personalized quote on full height ADA Gate Manufacturing.
