Location Photos
Illinois Student Assistance Commission - Deerfield, IL
Submitted to:
ISAC
Illinois Student Assistance Commission
Deerfield, IL
Submitted by:
www.TURNSTILES.us, Inc.
June 2024
www.TURNSTILES.us is an organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989.
The team at TURNSTILES.us is honored to provide our specialized Turnstile Security System to ISAC. Find the featured equipment information, photos, and project documentation below. We appreciate the opportunity to secure your facility.
Security System with Dual-Lane Motorized ADA Gate
EQUIPMENT

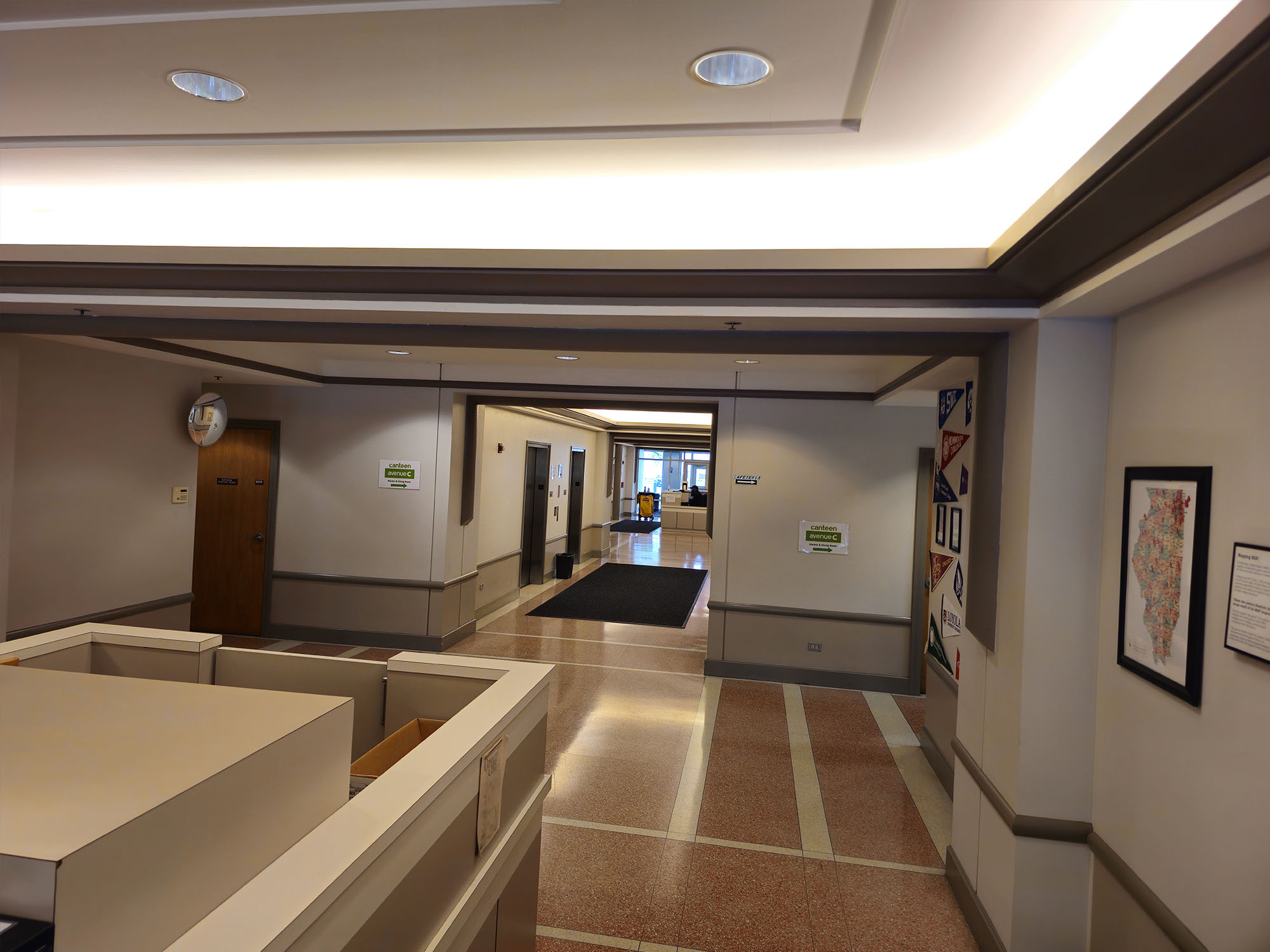

EAST SIDE
(1) Dual ADA Motorized Gate – HR1-A2-S
(1 wall of 2-panel) Post and Glass Panels, 3’6″ tall with 4″ Stanchions
(1) Post Standalone, 3’6″ tall with 4″ Stanchion
(1) Custom Base Plate with wire chase to accommodate the entire array. Top with raised circle rubber flooring.
(2-4) Wireless Push Buttons *Needs one per controlled direction
WEST SIDE
(1) Dual ADA Motorized Gate – HR1-A2-S
(2 walls of 2-panel) Post and Glass Panels, 3’6″ tall with 4″ Stanchions
(1) Post Standalone, 3’6″ tall with 4″ Stanchion
(1) Custom Base Plate with wire chase to accommodate the entire array. Top with raised circle rubber flooring.
(2-4) Wireless Push Buttons *Needs one per controlled direction
SERVICES
(1) AutoCAD Drafting of Equipment Detail and Dimensions
(1) Equipment Location Details
(1) Point-to-Point Schematic
(1) Concept Illustration
Option of Installation
Concept Images
AutoCAD Documentation
Featured Equipment
The HR1 Series automatic swing gates feature stainless steel, a square-shaped body, and a choice of a metal or glass arm.
– LED PICTOGRAMS: A red cross informs that the traffic direction is turned off/locked ); a green arrow informs that the traffic direction is turned on.
– BIDIRECTIONAL MOVEMENT: The device can be field programmed as one-way or two-way swing.
– PRECISE ROTOR DETECTION SYSTEM: The devices are equipped with an electronic rotor position measurement system that allows the control system to control the lock and the smooth motion of the arms. ‘A’ models have fully electric arm movement and ‘M’ models are electro-mechanical.
– SOUND SIGNALING: Built-in audio alarm.
Note: One button is required per controlled direction. (For example, 4 buttons for a 2-way double gate)
(West Entrance) Sensor system that alarms if someone goes over the walls or under the gate.
Wall and Post Mounting Options for Readers and Button Panels:
