Hago Automotive – Luka, MS
Submitted to:
Hago Automotive
Luka, MS
Submitted by:
www.TURNSTILES.us, Inc.
July 2024
The team at TURNSTILES.us is honored to provide our EntraPASS Access Control System and professional engineering, drafting, and installation to Hago Automotive Corp. Please find featured equipment information, photos, and project documentation below. We appreciate the opportunity to secure your facility.
EntraPASS Access Control Security Entrance System
EQUIPMENT
** ENTRAPASS ACCESS CONTROL **
(1) EntraPASS Global Edition Access Control Software
(1) Dell All-In-One EntraPASS Server Workstation
(3) KT-2 – Reader / Lock Controller
(6) HID Prox Pro II 5455 – Prox Photo-ID Card Readers
(5) Turnstile Relay & Base
(2) 18/4 Plenum Cable
(1) Fargo DTC 1250e – Photo ID Proximity Badge Printer
(2) 500 Card Print Ribbons
(1) Photo-ID Logitech Webcam w Stand & 10′ USB Cable
(1) 500 Photo-ID Prox Cards
** HAYWARD TURNSTILE AND ADA GATE **
(2) HT431 Single Full-Height Turnstiles
– Galvanized, 2-Way Electric
– Access Controller Mounting Plates
– Padded Safety Sleeves
– Home Position Switch
– Red/Green LED indicator lights Both Directions
– Key Lock/Unlock for Fail Safe Units
– Stainless Steel Half Canopy, covers passageway
– Safety Sleeve Orange 1.5″ (x24)
(1) HTG-M Full-Height ADA Gate
– Galvanized, RH Swing
– Security Mesh, Vertical Bars, Electric lock and Panic bar
– Access Controller Mounting Plates
– 24″ Reach Prevention Barriers (x2)
– Bracket kit for securing to turnstiles
** SECURITY FENCING **
(1) Install 71’ of 8’ tall industrial grade – galvanized chainlink
** FULL-SIZE CANOPY **
(1) 22′ x 22′ Post-Supported Canopy
– Wall Mounted Against Building along Width Direction
– Beam Size : 6″ X 10″ Extrusions Oriented along Width
– Post Size : 6″ X 6″ Extrusions
– Post Mount: In-ground posts with post sleeve knockouts
– Deck : 2.75″ Square Corrugated Extrusions
– Fascia : 8″ Extrusions – Note: Decking and fascia are supported in different planes.
– Drainage : Standard Post
SERVICES
AutoCAD Equipment Detail and Dimensions
Point-to-Point Schematic
Remote Desktop Assistance
Installation of Equipment
Training on EntraPASS
*Electric and conduit provided to the site by owner

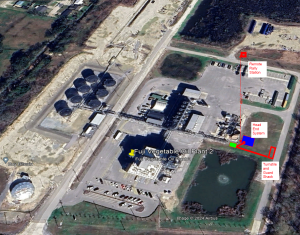

AutoCAD Equipment Location Detail
Equipment Data
HT431 Single Turnstile
Reach Prevention Barrier
Chain-Link Fence
The EntraPASS Global Edition Workstation comes with Award-Winning EntraPASS Global Edition Security Management Software loaded onto a powerful Dell All-in-One PC:
It is pre-configured for a variety of security levels so other users can view and manage alarms, time zones, access control points, and reports.
Powerful features support remote live monitoring and reporting.
Additional Options and Licenses – including easy web and mobile apps – are available to expand the functionality of your access control system.
Print your own secure IDs!
The Photo ID Badging Package enables you to produce secure, personalized Access Control Badges in one single, seamless step.
The direct-to-card printer and encoder also has an intuitive, user-focused SmartScreen graphical display, enabling efficient set-up, operation and maintenance of your technology investment.
The ideal card printing solution for small businesses, schools, and local governments, this is the fastest printer in its class, allowing you to produce 50% more visually-rich, full-color credentials in the same amount of time.
