EntraPASS Inmate Meal Tracking System
FCI Oxford - Oxford, WI
Submitted to:
Federal Correctional Institute
FCI Oxford, Oxford WI
Food Service Department
Submitted by:
Patrick McAllister
www.TURNSTILES.us, Inc.
September 2022 – February 2023
www.TURNSTILES.us is a professional organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989. We are a U.S. Federal Government Contract Holder (GS 07F 9239S) and are registered with the U.S. Federal Government System for Award Management (#181428611).
The EntraPASS Meal Tracking System (MTS) is designed for facilities with cafeterias to help manage their food line service. MTS combines the latest hardware and software technologies to provide an effective tracked-per-entry food line. This core system can be scaled to meet all of your food service management needs. We are pleased to present our security solutions to FCI Oxford. Please find photos and project information below.

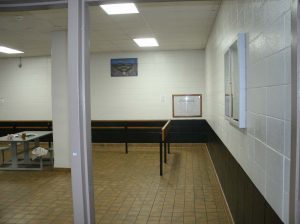

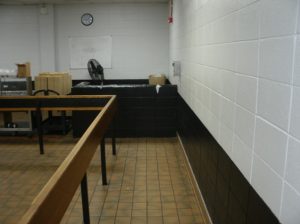

Location Photos
Manufacturing Photos
EntraPASS Global Edition Meal Tracking System
The EntraPASS Meal Tracking System (MTS) is designed for facilities with cafeterias to help manage their food line service. MTS combines the latest hardware and software technologies to provide an effective tracked-per-entry food line. This core system can be scaled to meet all of your food service management needs.
HEAD END
4 Total All-In-One Computers, 2 Total Vesa Wall Mounts
(1) EntraPASS Global Server Computer (Main Database #1/4)
(1) EntraPASS Intake Computer (Workstation #2/4)
EQUIPMENT
(2) Stainless Steel Super Wide Tripod Turnstiles – entry
– 40.39″ from back of cabinet to tip of arm
– To fit a 42″ passage space
(2) BC-301 Barcode Reader
(1) KT-400 Door Controller
(1) Battery Backup and Power Supply for Door Controller
(2) Relay, Base and Snaptrack
(2) Horn Strobes
(2) All-In-One Computer for Photo ID Above Turnstiles (#3/4, #4/4)
(2) Vesa Wall Mounts for Monitors
(2) Plenum Shielded Cable (500) Feet
(1) Wiring Package
SERVICE
Factory Programming
Remote Desktop Support
Equipment Details and Dimensions
Wiring Diagram
Shipping and Crating
(2) Factory Installers
(6) Days of Field Labor
(2) Days of Travel
Electric and Conduit Supplied to Base of Equipment by Others
Dimensions and Wiring Diagram
How It Works
The Meal Tracking System setup includes a server with EntraPASS Software in the Food Service Administrator’s office or another secure location. The database is loaded to this server, along with any reporting functions the facility requires. Additional computers can be set up for new user intake into the system or for other Administrators.
Inmate information is linked to a numbered card (or other ID method) which will be their meal card. At the beginning of each food line to be monitored, a scanner is installed and connected to a turnstile. As the identification is scanned, data is transmitted to the server.
If the visitor has been through the line already during that mealtime, the turnstile stays locked and passage is denied. If this is their first visit during that mealtime, access is granted. Additional options include temporary cards or tickets that may be issued on the spot.
