CM&B - Hudson, NH
Submitted to:
CM&B
Project: BAE – PTP01 & 02 Perimeter Fence
Hudson, NH
Submitted by:
www.TURNSTILES.us, Inc.
January 2025
www.TURNSTILES.us is a professional organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989. We are a U.S. Federal Government Contract Holder (GS 07F 9239S) and are registered with the U.S. Federal Government System for Award Management (#181428611).
TURNSTILES.us is honored to present our Turnstile Canopy Entrance Solutions to our clients. Please find selected equipment information below.
01-24-25 SUBMITTAL PDF
Enclosed Glass Canopy Turnstile Entrance
Equipment Data
TURNSTILE
- Full-Height Industrial
- Heavy-Duty, High-Security
- Three-Vane Cylindrical Arms
- Corrosion-resistant finish and Hardware
- Steel Spline Shaft, Collar, Bearing, Flange
- Extra Thick Mounting Brackets
- Made in America
- Electrical Specifications: Input voltage: 100-220 VAC Frequency: 50/60 Hz Operating Voltage: 30 VDC Operating Current: 0,2A
- 30″ Passage Width
- Galvanized Finish
- 2-Way Electric (Card Entry/Request-to-Exit)
– Reader and RTE by others (tbd)
– Fail Lock / Fail Open Selectable (tbd) - Bidirectional Key Override Set
- Reader Mounting Plates x2
GATE
- Full-Height Security Gate
- ADA Compliant Passage Width
- Premium Self-Closing Hinges
- Corrosion-resistant finish and Hardware
- Core Drill Mounts in Concrete
- 36″ Passage Width
- Galvanized Finish
- Steel Mesh Infill
- Strike Lock with Pushbar Exit
- Reader Mounting Plates x2
BARRIER
- Full-Height Partition
- Galvanized Finish
- Steel Mesh Infill
CANOPY
- Enclosed Glass Canopy ~12′ x 12′
- Rebar Cage Footers
- Aluminum Extrusion and Glass Storefront
- Glass Wings on Front and Back
- Wainscot Footer, Close to Ground
- Drainage to Right and Left Sides
TURNSTILES.us SERVICES
(*) Three-Year Equipment Warranty
(*) AutoCAD Drafting:
Equipment Detail, Dimensions and Schematic
(*) Factory Installation Field Labor
(*) Day Tool Rental:
Core Drill, Auger, Concrete Mixer
(*) Crating and Shipping

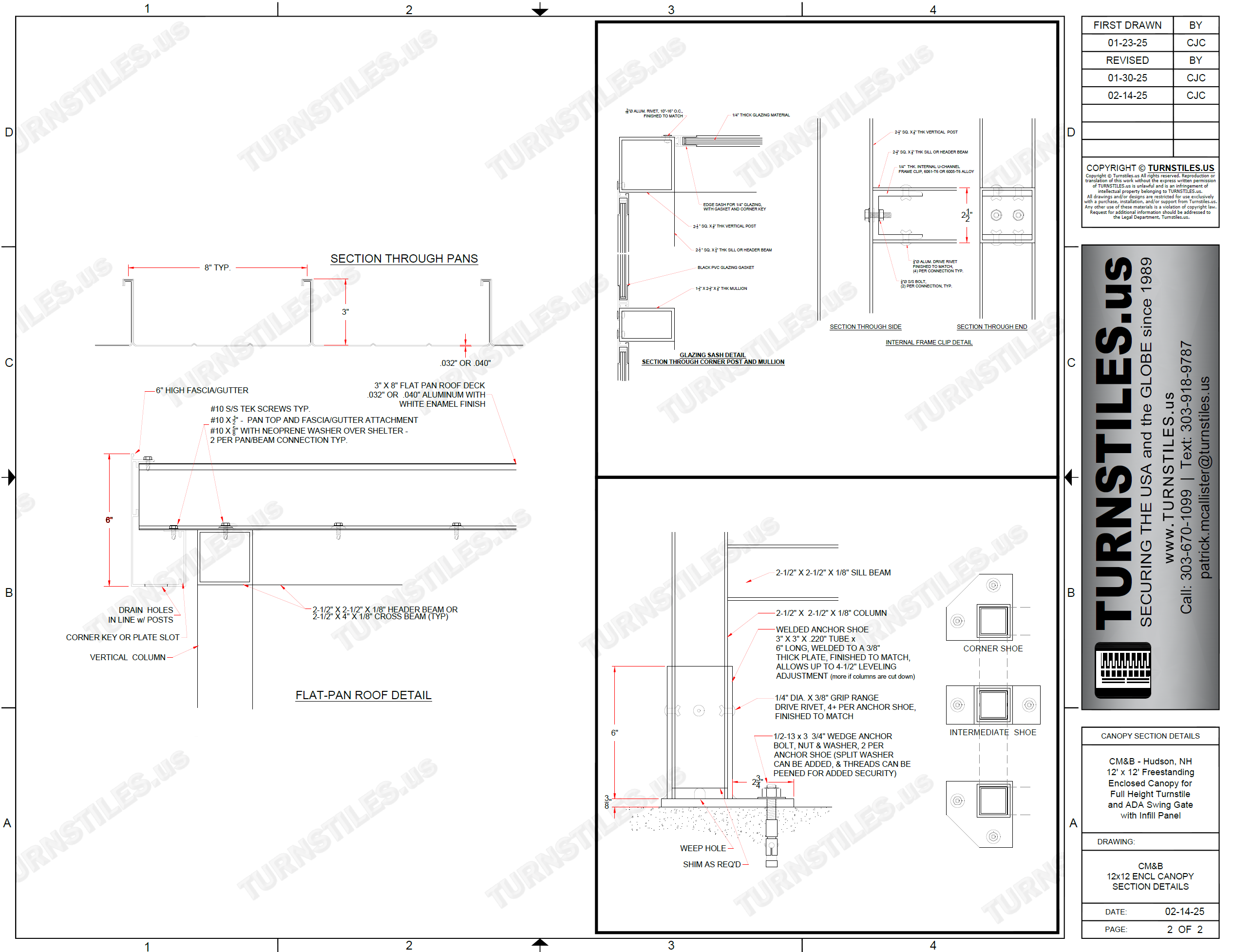

AutoCAD Dimension Detail
Concept Illustrations
* * APPEARANCE MAY VARY SLIGHTLY IN ACTUAL INSTALLATION – FABRICATION CHANGES OR SUBSTITUTIONS RESERVED * * *
